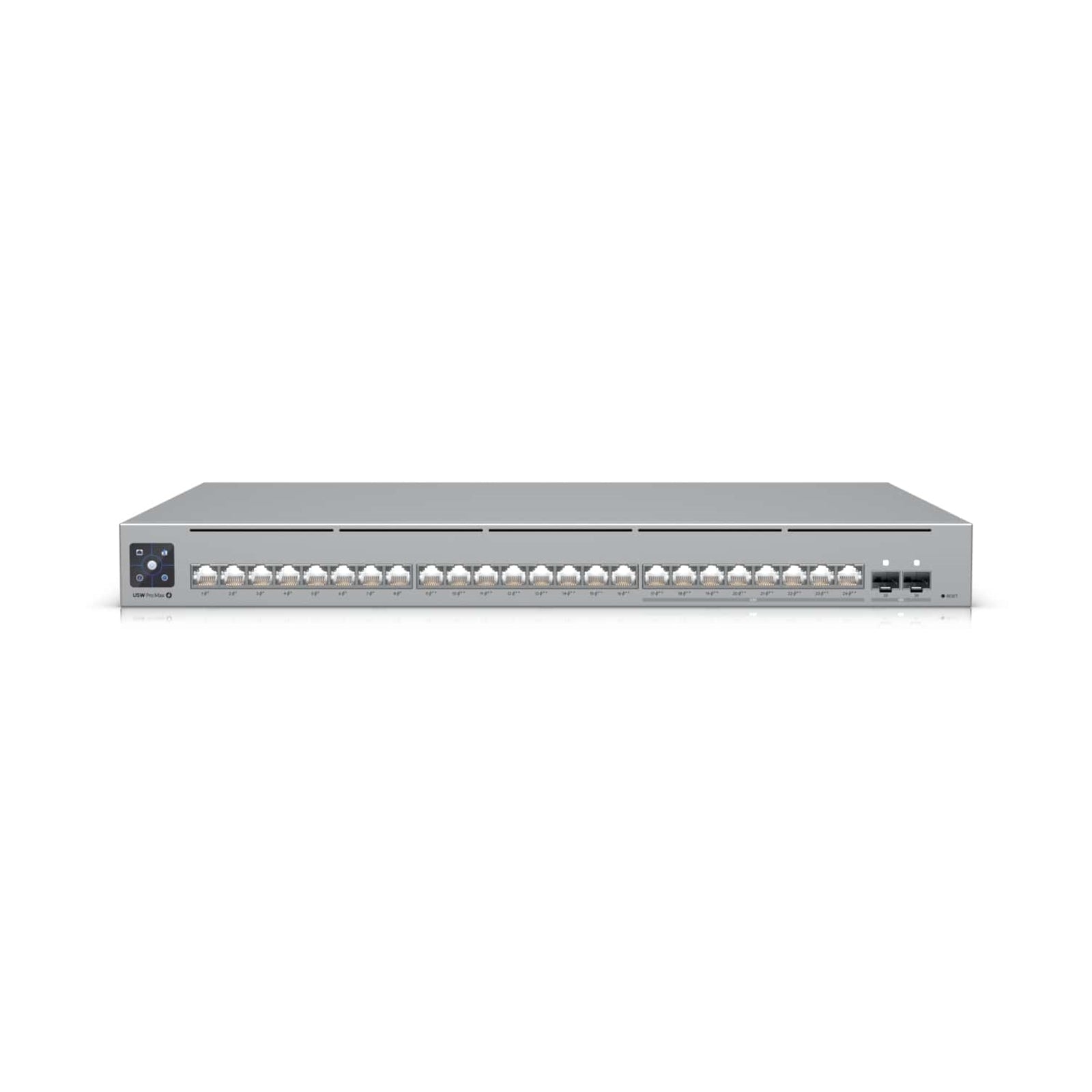

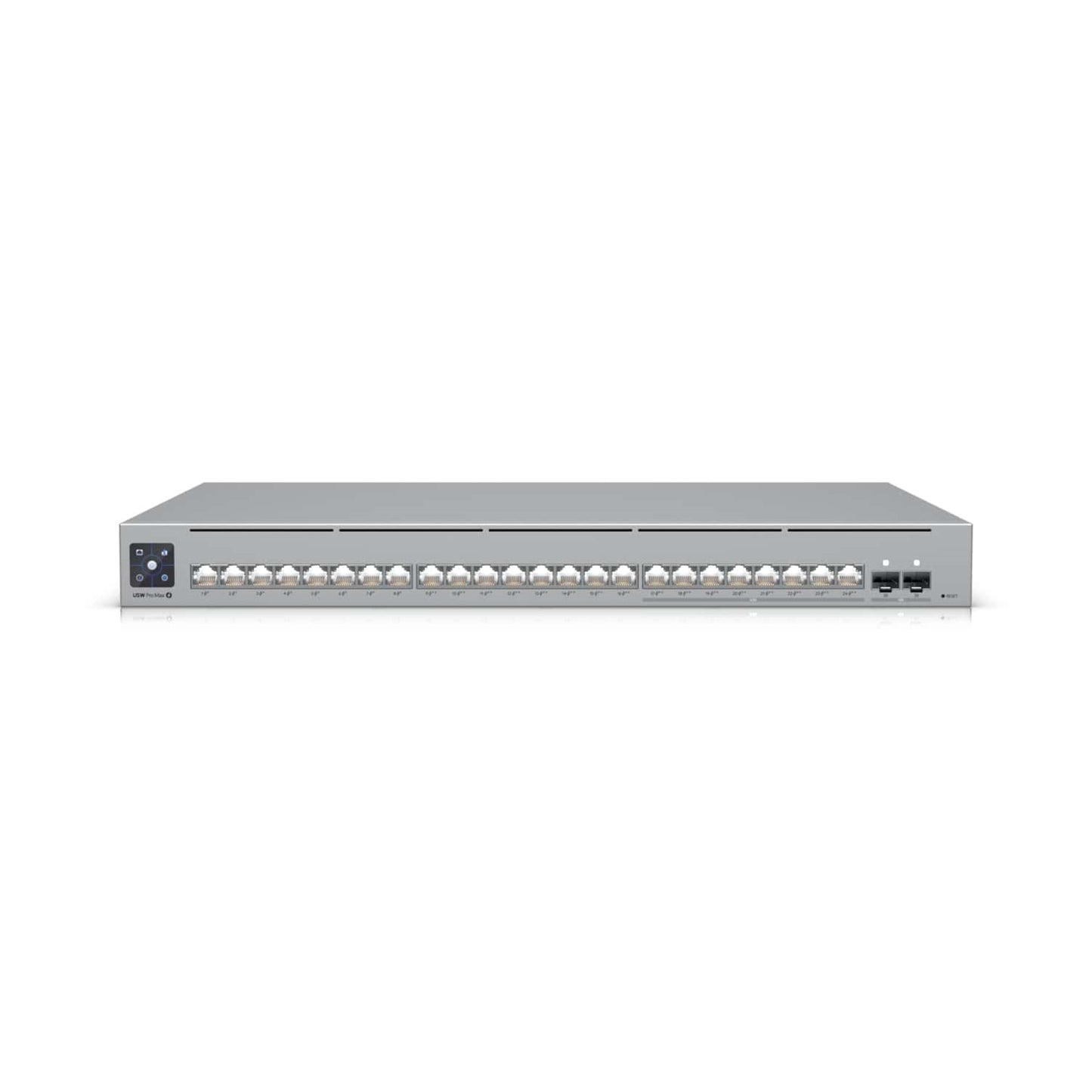

Ubiquiti UniFi Pro Max 24 PoE Network Switch - USW-Pro-Max-24-POE
The USW-Pro-Max-24-PoE is a cutting-edge Layer 3 Etherlighting switch, designed for high-power PoE++ output. This 24-port switch is an exceptional blend of performance and innovation, suitable for demanding network environments. USW-Pro-Max-24-PoE features Etherlighting Ports that illuminate to indicate port location, speed/link, and native VLAN/network. When paired with UniFi Etherlighting Patch Cables, the brightness is optimised for easier port identification USW-Pro-Max-24-PoE features 8 x 2.5 GbE PoE++ ports and 16 x GbE ports, which include 8 x PoE+ and 8 x PoE++ ports, allowing for versatile power delivery to connected devices. The switch is also equipped with 2 10G SFP+ ports for high-speed uplinks and data-intensive operations. The USW-Pro-Max-24-PoE switch offers a total non-blocking throughput of 56 Gbps and a switching capacity of 112 Gbps. LEDs
Specs
Network
| y Features | 24-port switch8 x 2.5 GbE PoE++ ports16 x GbE ports including (8) PoE+ and (8) PoE++2 x 10G SFP+ portsLayer 3Etherlighting ports that illuminateDC power backup ready400W total PoE availability |
| Weight &Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")Weight Without mounting brackets: 5.1 kg (11.3 lb)With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure material | SGCC steel |
| Networking interface | (16) GbE RJ45 ports(8) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports |
| Ethernet | LocatingSpeed/linkNative VLAN/network |
Other
| Management interface | Ethernet In-Band |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 56 Gbps |
| Switching capacity | 112 Gbps |
| Power method | Universal input, 100—240V AC, 50/60 HzUSP RPS DC input |
| Power supply | AC/DC, internal, 450W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W (Excluding PoE output) |
| Total available PoE | 400W |
| Max. PoE wattage per port by PSE | PoE: 15.4WPoE+: 30WPoE++: 60W |
| Voltage range PoE mode | PoE: 44—57VPoE+: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| System | StatusRPSStatus |
| Box Contents | 1 x USW-Pro-Max-24-PoE Switch4 x rubber feet1 x UK power cable1 x Pair rackmount ears1 x Rackmount accessories |
