Description

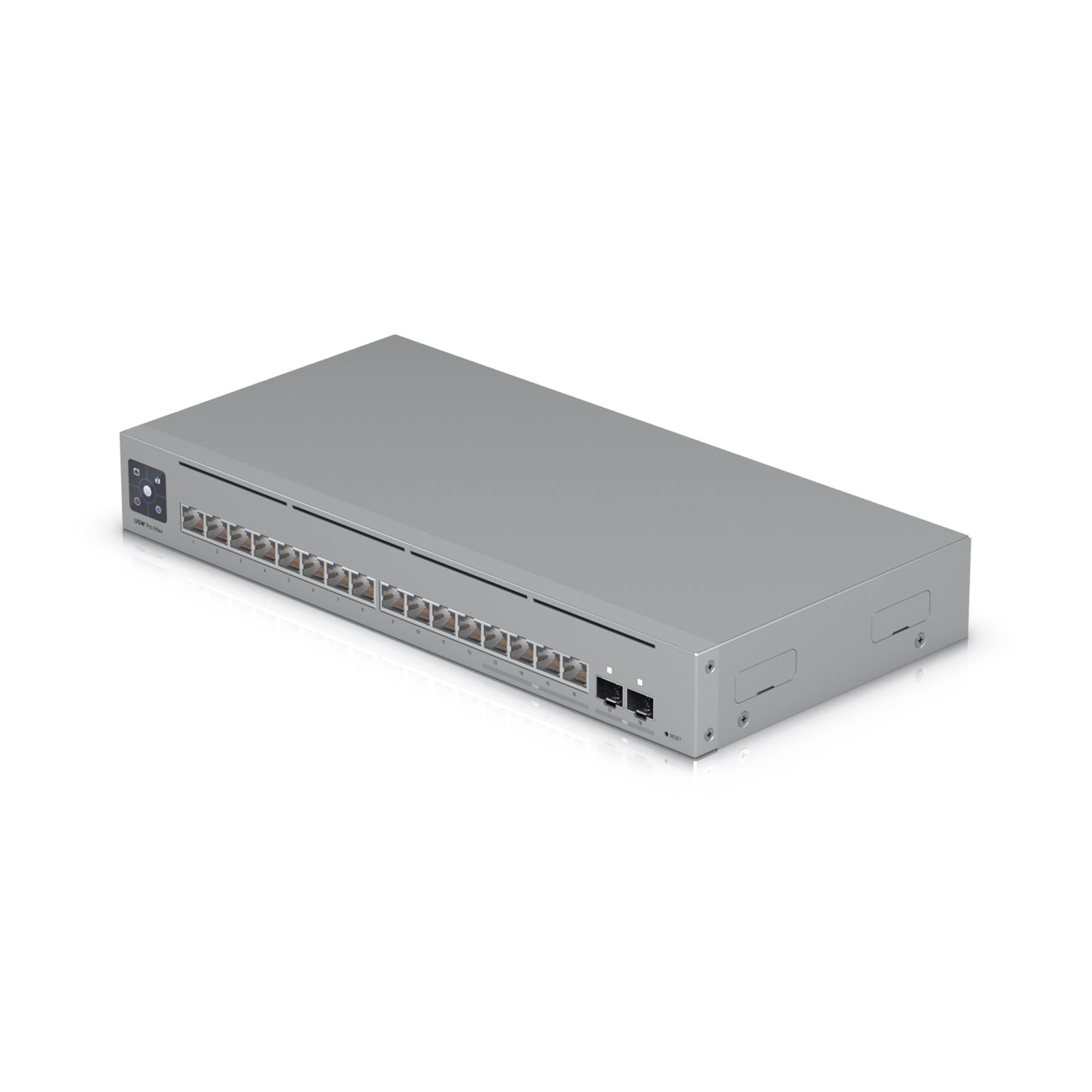

Ubiquiti USW-PRO-MAX-16 UniFi Pro Max 16 Port Gigabit Layer 3 Managed Non-POE Switch
A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options. Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network (4) 2.5 GbE RJ45 ports(12) GbE RJ45 ports(2) 10G SFP+ portsVersatile desktop, wall, and rack mounting (optional rack mount kit required)Silent, fanless cooling system Layer 3 Features: DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs
Specs
Physical
| Weight | 1.95 kg (4.3 lb) |
| Enclosure Material | SGCC steel |
| Management Interface | Ethernet In-Band |
| Networking Interface | (12) GbE RJ45 ports(4) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports |
| Total Non-Blocking Throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62.496 Mpps |
| Power Method | Type-C adapter |
| Power Supply | 5V, 25W |
| Max Power Consumption | 25W |
| LCM Display | (1) 1.3" touchscreen |
| Button | Factory Reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 Features | IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs |
