Description

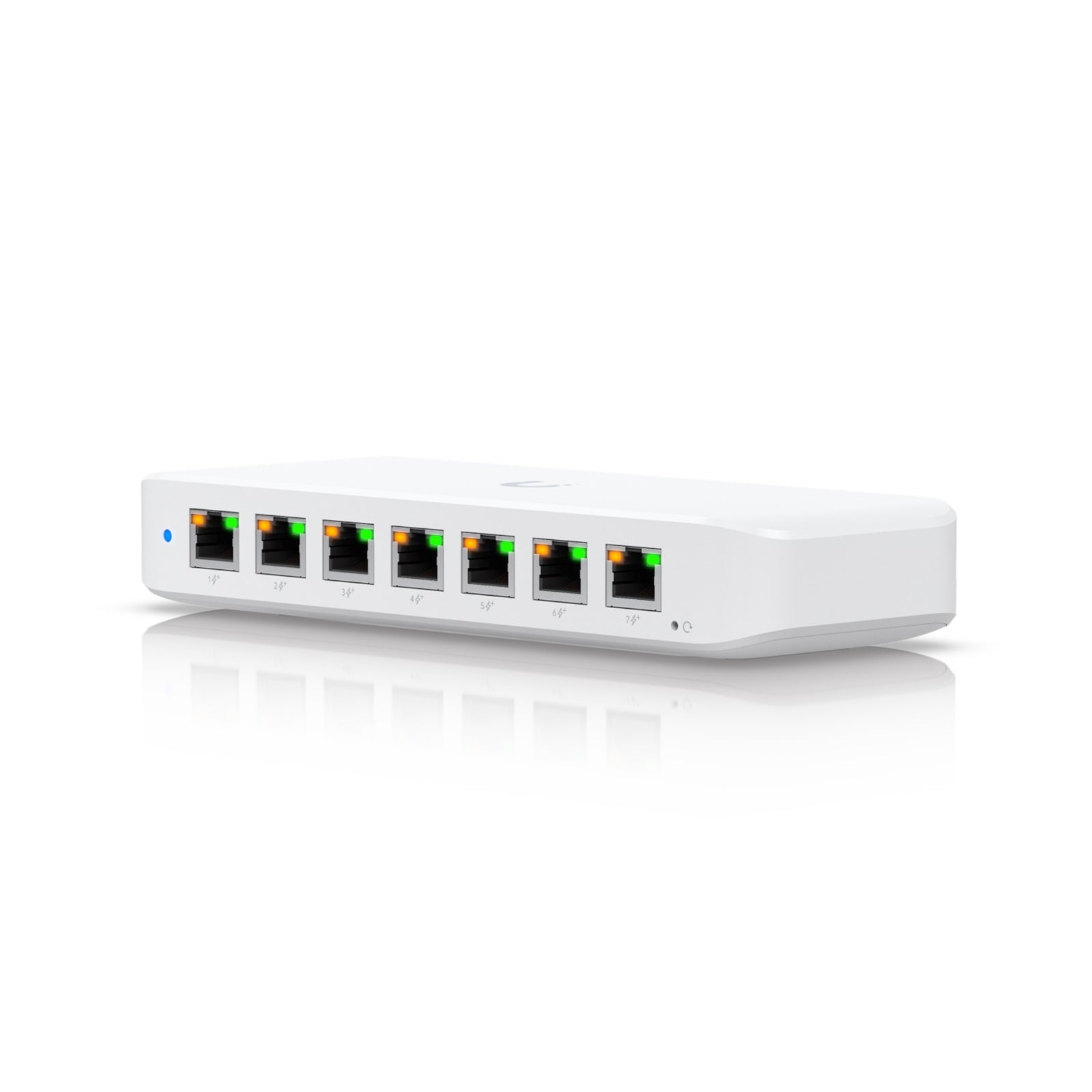

Ubiquiti USW-ULTRA-210W UniFi Switch Ultra 8 Port Gigabit POE+ Compact Layer 2 Managed Switch
(7) GbE PoE+ output ports(1) GbE port with optional PoE++ input202W PoE availability with the included AC power adapter POE Interface: (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Layer 2 Features: Port isolationStorm controlPort mirroringMulticast / broadcast rate limitingFlow controlJumbo framesEgress rate limit
Specs
Physical
| Weight | Device: 320 g (11.3 oz)Wall mount: 45 g (1.6 oz)210W adapter: 770 g (1.7 lb) |
| Enclosure Material | Polycarbonate |
| Management Interface | Ethernet In-Band |
| Networking Interface | (8) GbE RJ45 ports |
| Total Non-Blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.904 Mpps |
| Power Method | (1) 54V, 3.9A power adapter (Included)PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
| Power Supply | 54V, external, 3.9A/210W |
| Supported Voltage Range | 44—57V DC |
| Max. Power Consumption | 9W with PoE input (Excluding PoE output)8W with AC adapter input (Excluding PoE output) |
| Total Available POE | PoE++ input: 42WPoE+ input: 16W60W PoE adapter input: 42W60W AC adapter input: 52W210W AC adapter input: 202W |
| Max. Power Wattage Per Port by PSE | 30W |
| Button | Factory Reset |
| Ambient Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F)60W AC adapter input: -20 to 45° C (-4 to 113° F)210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LED - System | Status |
| LED - Ethernet | PoELink Activity |
| UniFi Network Requirement | Version 8.0.7 and later |
