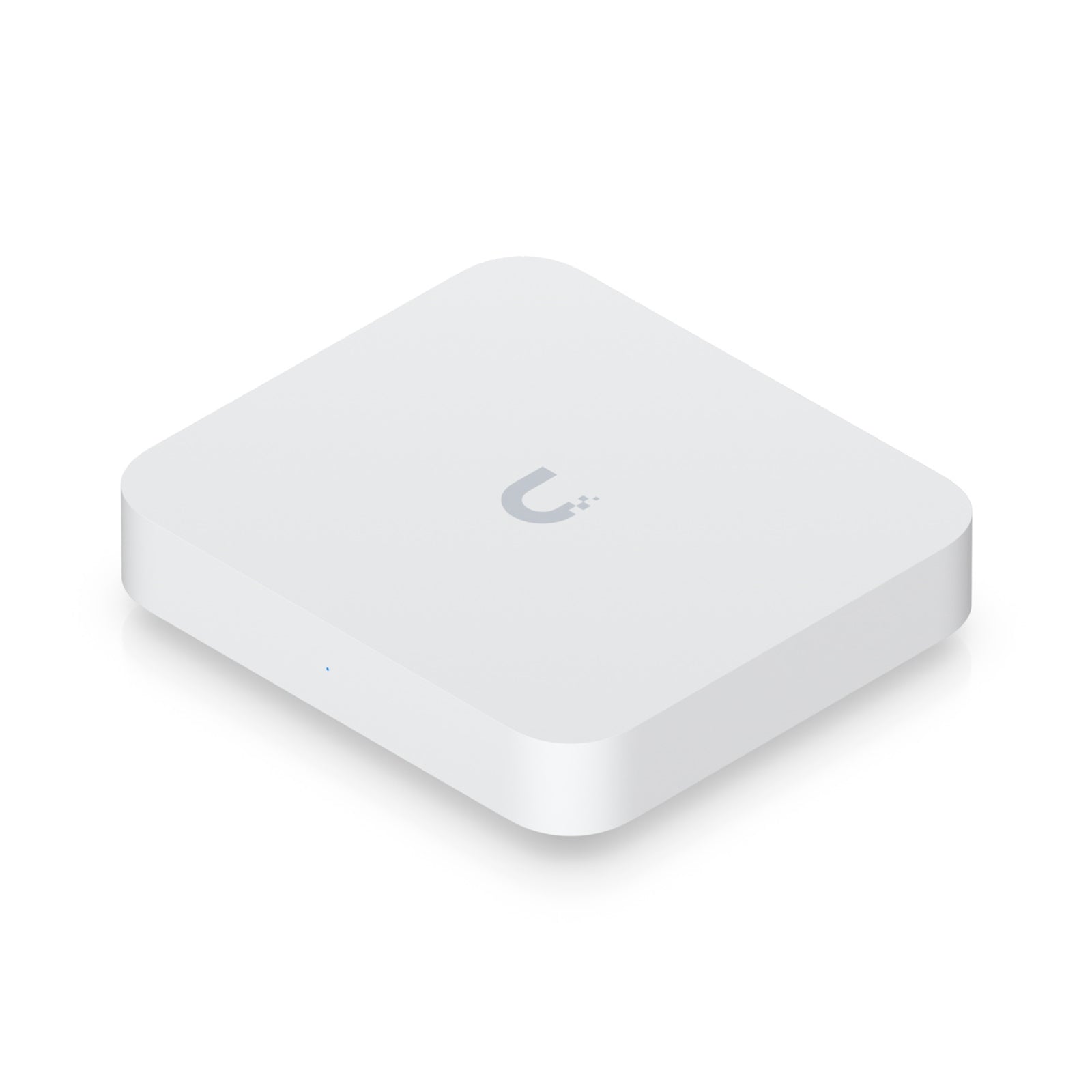

Ubiquiti UXG-MAX UniFi Gateway Max 2.5G Multi-WAN Advanced Router and Gateway - UK Plug
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites. Managed with a CloudKey, Official UniFi Hosting, or UniFi Network ServerUp to 1.5 Gbps routing with IDS/IPS(1) 2.5 GbE WAN port(4) 2.5 GbE LAN ports, including (1) remappable to WANUSB-C poweredManaged with UniFi Network 8.1.113 and later Performance: WiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationInternet quality and outage reporting Next-Generation Security: Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall Advanced Networking: License-free SD-WANWireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport and Identity Enterprise VPNPolicy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIPv6 ISP support WAN:(1) 2.5 GbE RJ45 port
Specs
Physical
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Resistance | IK04 |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| Memory Information | 2GB DDR4 |
| Management Interface | EthernetBluetooth |
| Networking Interface | LAN:(4) 2.5 GbE RJ45 ports |
| IDS/IPS Throughput | 1.5 Gbps**Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power Method | USB type C (5V/3A) |
| Supported Voltage Range | 100240V |
| Maximum Power Consumption | 9.6W |
Other
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 40� C (14 to 104� F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
