Description

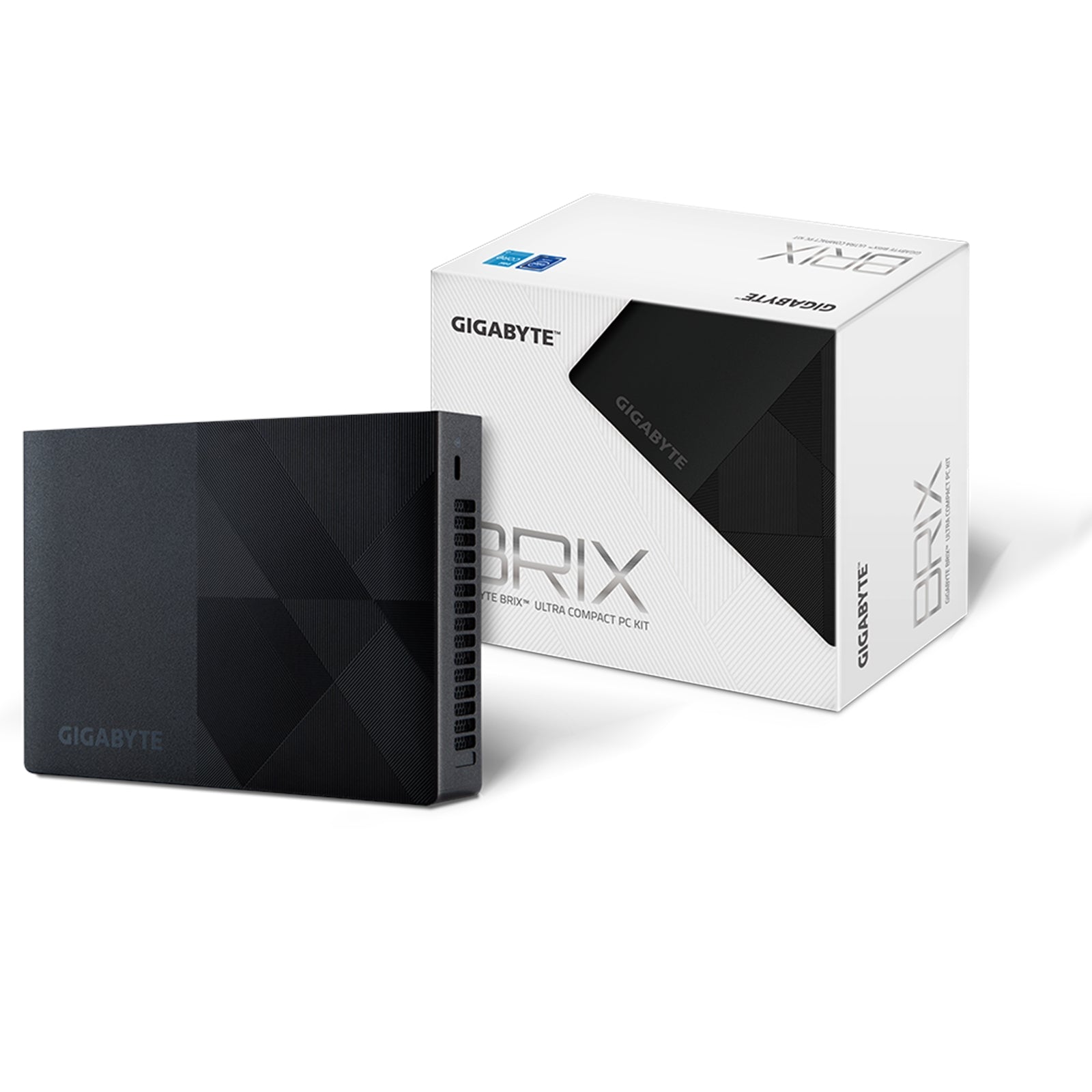

Gigabyte BRIX (GB-BN1P-N200) Barebone Kit, Intel N200 3.2GHz Quad Core CPU, 1 x DDR4 SO-DIMM Slot, 2 x M.2 2280 Slots, Wi-Fi 6 & Bluetooth 5.2
Environment: System Environment Operating Temperature: 0�C to +35�CSystem Storage Temperature: -20�C to +60�C
Specs
Processor
| Memory | 1 x SO-DIMM DDR4 slot3200MHzMax. 32GB |
Storage Controllers
| Dual M.2 Storage Supports | It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations. |
| Expansion Slots | 1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)1 x M.2 2280 slots for SSD (PCI-e x2)1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi+Bluetooth card) |
| Front I/O | 1 x Power Button1 x USB3.2 Gen2 Type-A1 x USB3.2 Gen2 Type-C1 x Headphone / Microphone |
| Rear I/O | 2 x HDMI 2.11 x 2.5 GbE RJ453 x USB 2.0 Type-A1 x USB 3.2 Gen2 Type-A1 x DC-In1 x DP 1.41 x Kensington lock slot |
| Power Supply | Input: AC 100-240VOutput: DC 19V/3.42A, 65W |
Network
| Wifi Card | Intel AX101Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz |
| Graphics | Intel UHD Graphics 750 |
Rear Panel I/O Ports
| USB Type-C Connector | The USB Type-C is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s. |
| Support HDMI 2.1 / DP 1.4 Dual Output | HDMI 2.1 offers 18 Gb/s of bandwidth, which is nearly twice that of the previous generation, and it is also backward compatible with HDMI 1.4. |
Audio
| HDMI Resolution (Max.) | HDMI 2.1Support 4K@60P HDR10Mini DP Resolution (Max.)DP 1.4support 4K@60P HBR2 |
Physical
| Dimension | 163.5 x 116.8 x 28.5 mm0.54 L |
| Motherboard Size | 154 x 110 mm |
Other
| Support OS | Win11 64bit |
