Description

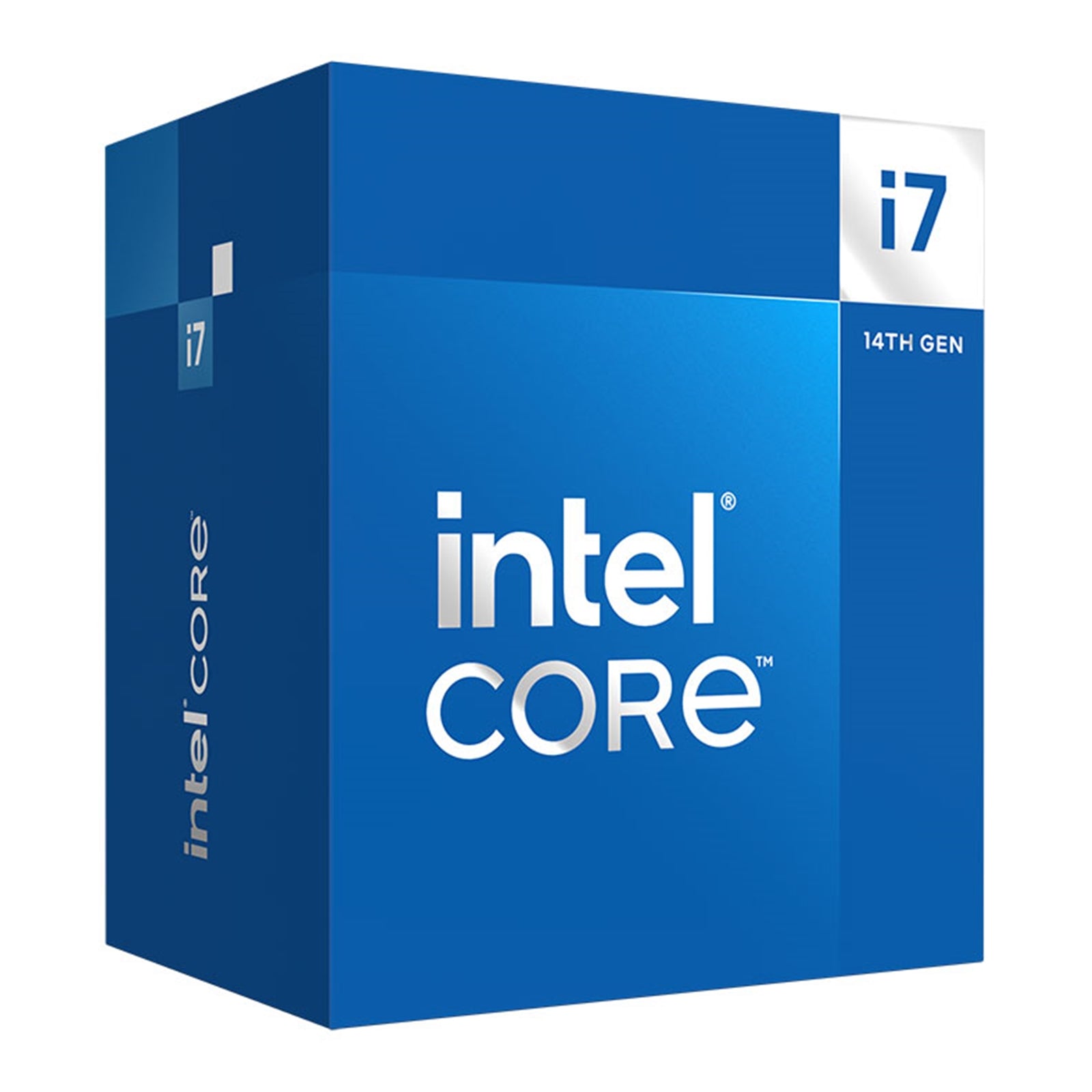

Intel Core i7 14700 20 Core Processor, 28 Threads, 2.1GHz up to 5.3GHz Turbo Raptor Lake Socket LGA 1700 33MB Cache, 65W, Maximum Turbo Power 219W, Intel UHD 770 Graphics
Specs
Processor
| Total Cores | 20 |
| No of Performance-cores | 8 |
| No of Efficient-cores | 12 |
| Total Threads | 28 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Base Frequency | 2.1 GHz |
| Efficient-core Base Frequency | 1.5 GHz |
| Processor Base Power | 65 W |
Memory
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/sUp to DDR4 3200 MT/s |
| Max No of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
Expansion Slots
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1x16+4, 2x8+4 |
| Max no of PCI Express Lanes | 20 |
Network
| Max No of DMI Lanes | 8 |
Other
| Max Turbo Frequency | 5.4 GHz |
| Cache | 33 MB Intel Smart Cache |
| Total L2 Cache | 28 MB |
| Maximum Turbo Power | 219 W |
| Direct Media Interface (DMI) Revision | 4.0 |
| Scalability | 1S Only |
