Description
be quiet! Pure Power 13 M 550W is ATX 3.1 compliant and PCIe 5.1 compatible, 10-year manufacturer's warranty

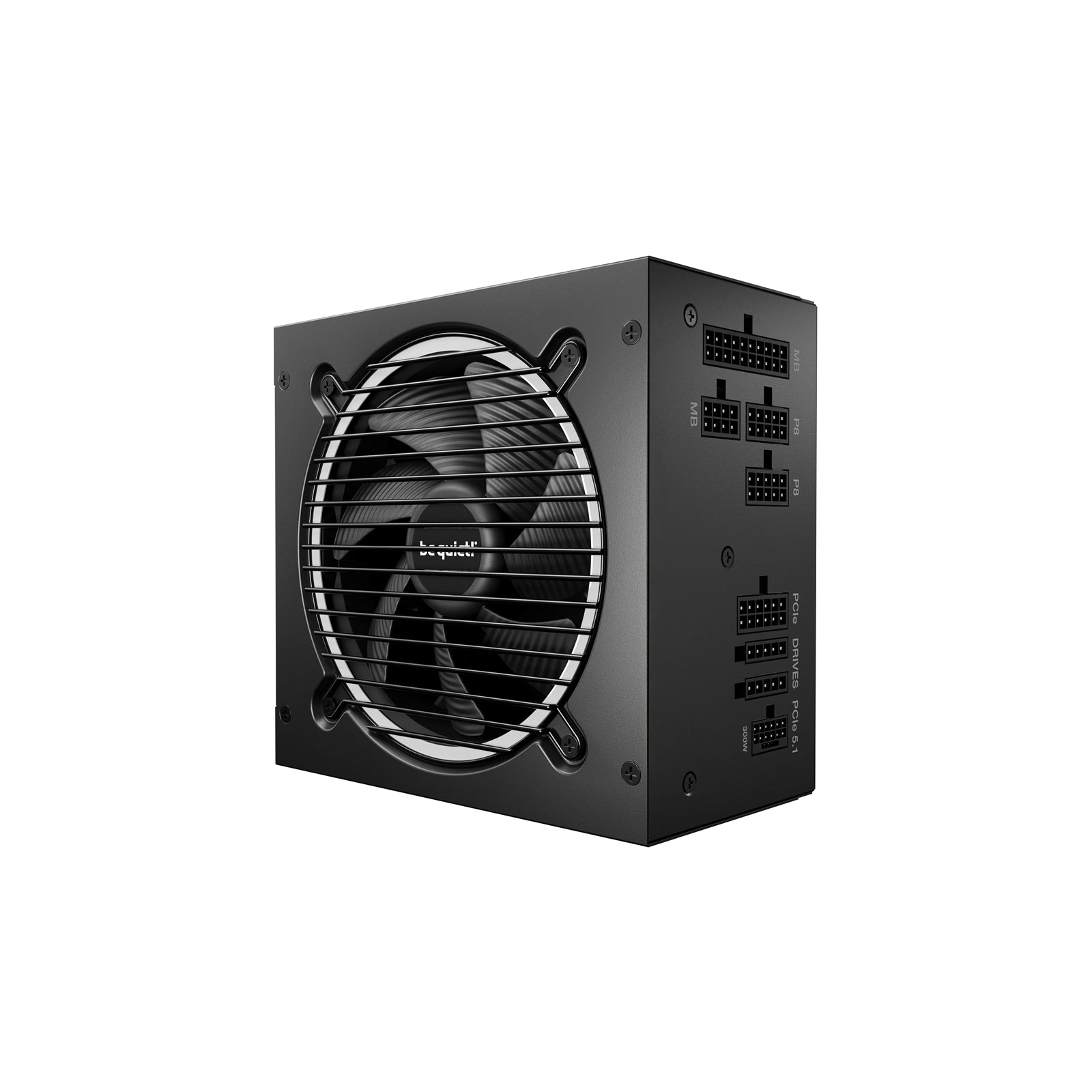

The be quiet! Pure Power 13 M 550W 80+ Gold Modular Power Supply is designed to deliver reliable and efficient power for modern PC builds. Fully ATX 3.1 compliant and PCIe 5.1 compatible, it provides excellent support for both current and next-generation graphics cards. With modular cabling, semi-passive cooling, and a high efficiency rating, its an ideal choice for quiet and powerful systems.
Specs
Chipset & Form Factor
| ATX Form Factor: | ATX 3.1 |
What's Included
| Cable Set: | Fully modular flat and sleeved cablesMax length: 95cm |
Physical
| Dimensions (L x W x H): | 160 x 150 x 86 mm |
Other
| Model: | Pure Power 13 M 550W 80+ Gold Modular Power Supply |
| Output Power: | 550W continuous, 600W peak |
| Efficiency: | 80+ Gold (up to 93.8% efficiency) |
| Voltage Rails: | Single 12V rail, 45.8A output |
| Connectors: | 1 x 24-pin ATX1 x 4+4-pin CPU +12V (EPS)1 x PCIe 5.1 12V-2x6 (300W)2 x PCIe 6+2-pin5 x SATA2 x Molex (PATA) |
| Fan: | 120mm be quiet! silence-optimised fan, rifle bearing |
| Cooling: | Semi-passive, temperature-controlled operation |
| Fan Noise: | 14.8 dB(A) at 2050% load20.8 dB(A) at 100% load |
| Power Input: | 100240V AC, 50/60Hz |
| Power Output: | +3.3V: 20A+5V: 20A+12V: 45.8A (550W max combined)-12V: 0.3A+5Vsb: 3A |
| Special Features: | Future-proof ATX 3.1 and PCIe 5.1 supportSemi-passive silent operationRobust 12V rail designFull suite of safety protections |
| Warranty: | 10-year manufacturers warranty |
