Description
be quiet! Pure Power 13 M 1000W is ATX 3.1 compliant and PCIe 5.1 compatible, 10-year manufacturer's warranty.

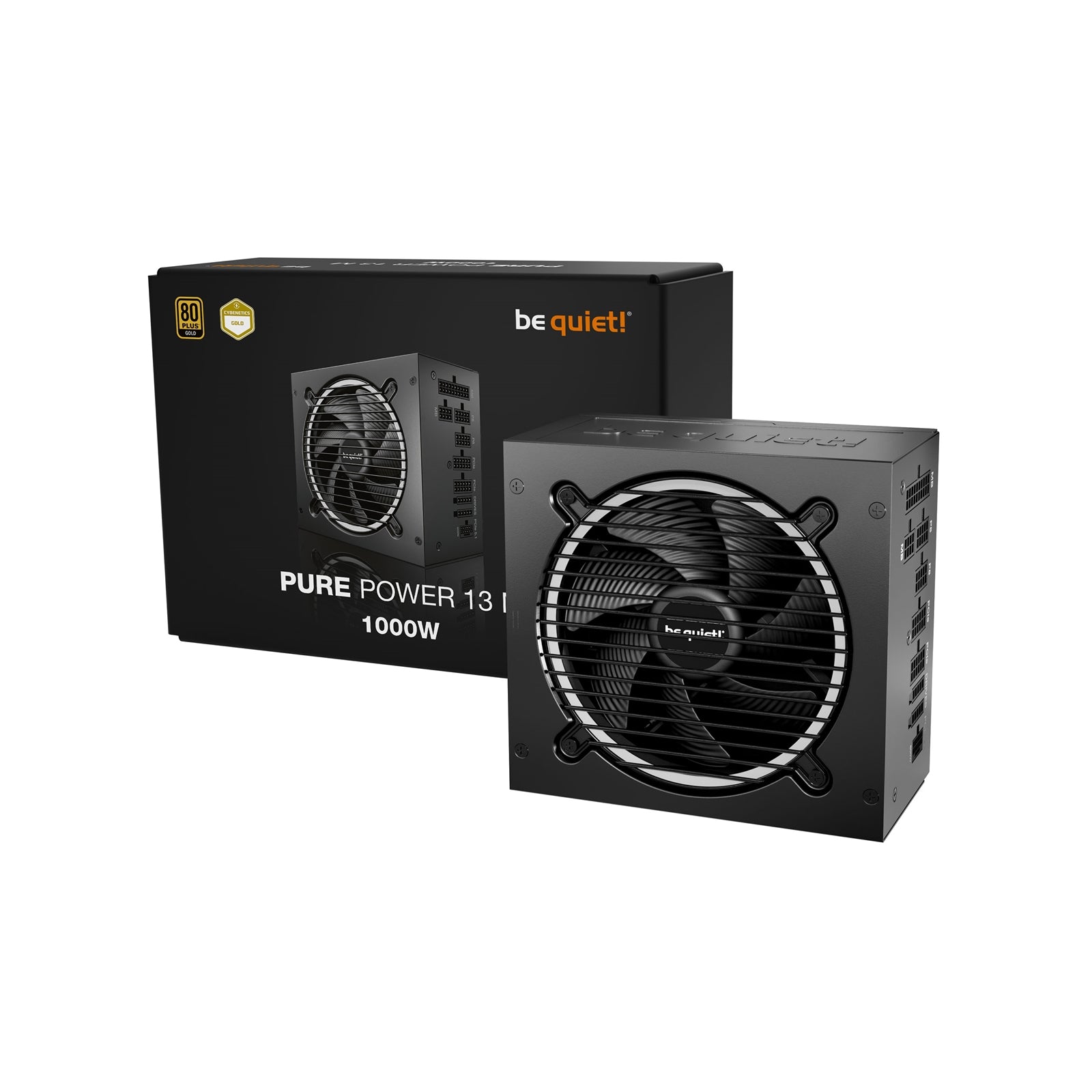

The be-quiet! Pure Power13M 1000W (MPNBP028EU) is a fully modular, high-efficiency PSU designed for advanced desktop systems. It meets ATX 3.1 standards and offers PCIe 5.1 compatibility, including a native 12V-2x6 connector for next-gen GPUs. Paired with 80 PLUS Gold certification and semi-passive (zero-RPM) cooling, it delivers whisper-quiet yet powerful performance, backed by robust protections and a 10-year warranty.
Specs
What's Included
| Cable Length: | Up to ~95cm total; ~55cm to motherboard |
Network
| Model / MPN: | Pure Power 13 M 1000W (BP028EU) |
| Form Factor: | ATX 3.1 (EPS 12V v2.92) |
| Power Output: | 1000W continuous / 1050W peak |
| Efficiency Rating: | 80 PLUS Gold (up to ~94.4% at 50% load) |
| Input Voltage: | 100240VAC |
| Input Frequency: | 5060Hz |
| Input Current: | ~6A @ 240VAC, ~12A @ 120VAC |
| Power Factor: | =0.98 at full load |
| Modern Standby: | Supported; <0.1W standby consumption |
| Operating Temperature: | Up to 40�C |
Physical
| Dimensions: | ~160x150x86mm (WxDxH) |
Other
| Rail Operation: | Single powerful 12V rail (up to 83A) |
| Additional Rails: | 3.3V / 5V rails at 22A each; -12?V, +5VSB outputs supported |
| Hold-up Time: | ~21ms at full load; ~28ms at 80% load |
| Protections: | OCP, OVP, UVP, OPP, OTP, SCP, surge/inrush protection |
| Fan: | 120mm rifle-bearing, semi-passive zero-RPM at low load |
| Noise Levels: | ~13.6dB(A) at ~20% load; ~30.3dB(A) at full load |
| Modularity: | Fully modular cables, flat and sleeved style |
| Connectors: | 1 x 20+4-pin ATX1 x 4+4-pin CPU (EPS)1 x 8-pin CPU1 x 12V-2x6 (600W)4 x 6+2-pin PCIe6 x SATA power2 x Molex (PATA) |
| Warranty: | 10-year limited warranty |
