Description

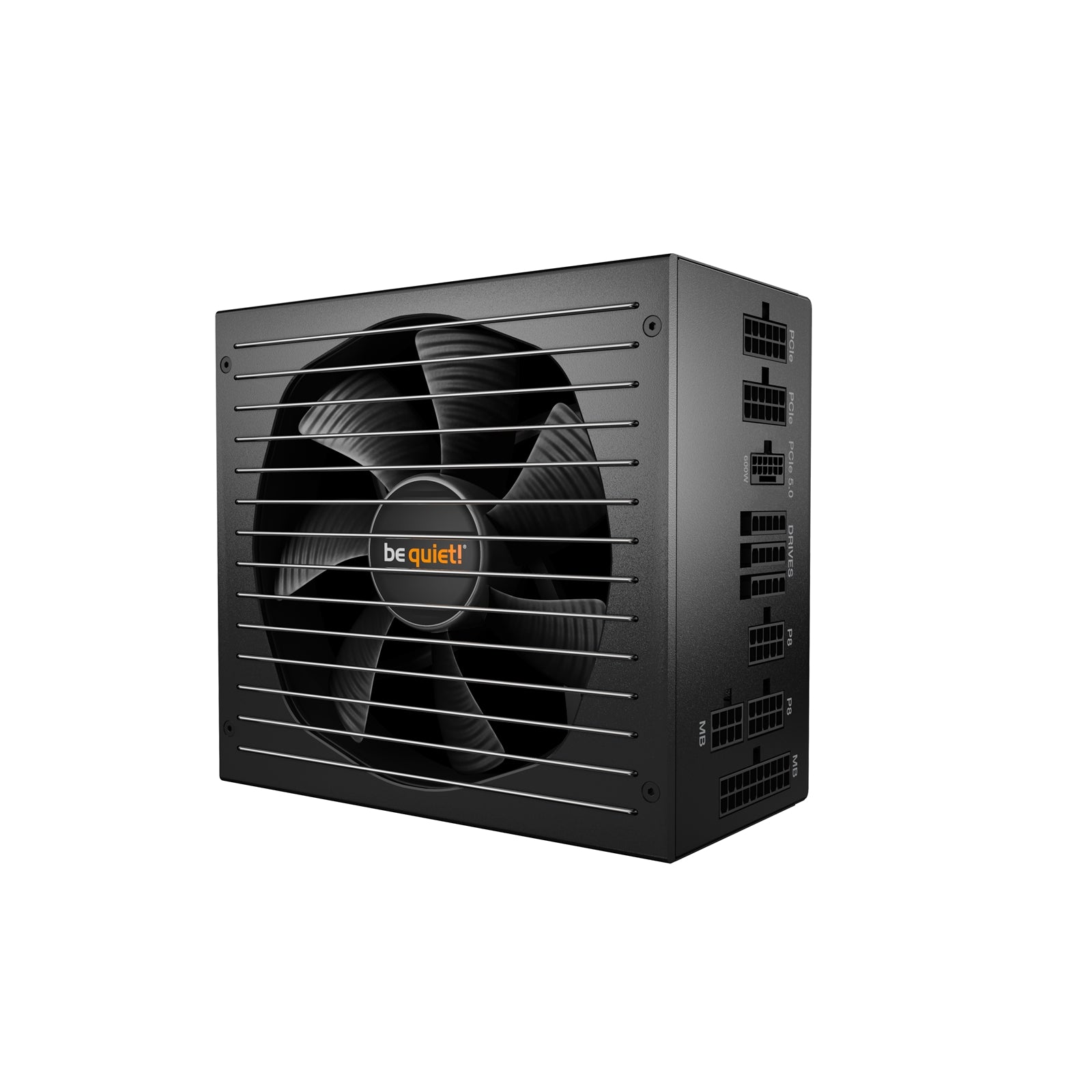

be quiet! Straight Power 12 750W PSU, 80 PLUS Platinum, Japanese Capacitors, Fully Modular, 10 Year Warranty
World Class Quiet and Efficiency: Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS� Platinum certification and virtually inaudible operation. - 80 PLUS Platinum efficiency (up to 93.8%)- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors- Handles massive power excursions- Virtually inaudible Silent Wings 135mm fan- Funnel-shaped fan opening on PSU case for high airflow intake- Full bridge LLC technology for unmatched signal stability- One massive high-performance 12V-rail- Japanese 105�C capacitors ensure highest stability and reliability- Modular cable management for maximum convenience- 10-year manufacturer warranty
Specs
Processor
| 12V-2x6 cables: | 1 |
| PCI-e 6+2-pin (GPU): | 4 |
Chipset & Form Factor
| FUTURE-PROOF YOUR SYSTEM - Fulfills all ATX 3.1 specifications | Straight Power 12 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come. |
What's Included
| Modular cables: | Yes |
| Sleeved cables: | Yes |
| Maximum cable length (cm): | 100 |
| Cable length to motherboard (cm): | 60 |
| No. of cables: | 9 |
| ATX-Motherboard (20+4-pin): | 1 |
| Cable ties: | Yes |
| Dimensions without cable (L x W x H), (mm): | 160 x 150 x 86 |
Physical
| Weight (kg): | 1.76 |
| Color: | Black |
Other
| 80 PLUS� PLATINUM CERTIFIED - Highly efficient operation | Straight Power 12 750W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. |
| THE NEW STANDARD OF POWER - For massive transient loads | Straight Power 12 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. |
| 80 PLUS certification: | Platinum |
| Efficiency (%) at 230V, 2% load: | 65.0 |
| Efficiency (%) at 230V, 10% load: | 88.3 |
| Efficiency (%) at 230V, 20% load: | 92.6 |
| Efficiency (%) at 230V, 50% load: | 93.8 |
| Efficiency (%) at 230V, 100% load: | 92.9 |
| 12V single rail operation: | Yes |
| +5Vsb (A): | 3 |
| Max. combined power 12V (W): | 750 |
| Max. combined power 12V-2x6 (W): | 600 |
| Max. combined power 3.3V + 5V (W): | 130 |
| Hold-up time at 100% load (ms): | 24.8 |
| Power good signal (ms): | 100 - 150 |
| Energy Star: | 8.0 |
| ErP: | Yes |
| RoHS: | Yes |
| Triman: | Yes |
| Screws: | Yes |
| Warranty (Years): | 10 |
| Article Number: | BN336 |
| EAN Code: | 4260052189412 |
