Description

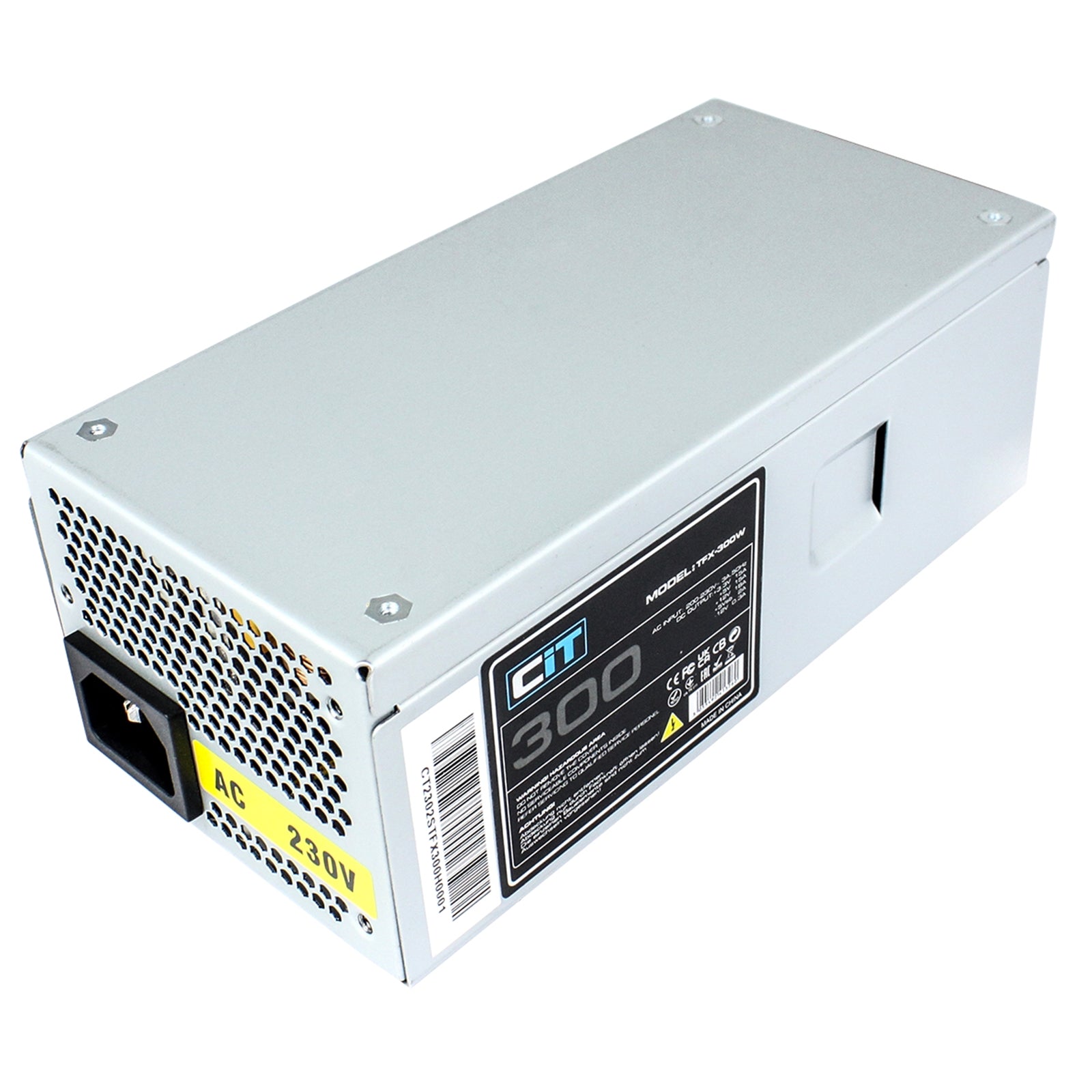

CIT 300W TFX-300W Silver Coating Power Supply, Low Noise 8cm Fan with intelligent fan speed control, Support standard TFX form factor
Inject your PC system with the TFX-300 it is a TFX 12 V v2.31 compliant, small and compact for small desktop cases. Expanding the scope of SFF design possibilities. The best choice for system builders with features that enthusiasts want such as all silver exterior coating, low noise 80mm fan, and flat black cables. In addition, the TFX-300 features a strong 12V rail design supports high stability outputs for even the most demanding hardware to provide reliable and high-performing system operation.
Specs
What's Included
| What's In The Box: | PSUManual |
Physical
| Dimensions: | 85mm x 65mm x 175mm (W x H x D) |
| Colour: | Silver |
| Unit (Product) Dimensions (mm): | 85mm x 65mm x 175mm (W x H x D) |
| Packaging Dimensions (mm): | 210mm x 76mm x 142mm (W x H x D) |
| Net Weight (KGs): | 0.83 KGs |
| Gross Weight (KGs): | 0.93 KG |
Other
| Input Voltage: | 200-230VAC |
| Input Current: | 3A |
| Input Frequency Range: | 50-60Hz |
| Power Good Signal: | 100-500ms |
| Connections | 20+4 Pin Main Connectors: x 14+4 Pin 12V Connectors: x 1SATA Connectors: x 34-Pin Molex Connectors: x 1 |
| Hold Up Time: | 10ms-40ms |
| Efficiency: | >72% |
| Protection: | OVP / UVP / OPP / SCP |
| Power: | 300W |
| Operation Temperature: | 0-40�C |
| Safety: | CE / UKCA / FCC / CB / REACH / EAC / RoHS |
| Cooling: | 80mm Black Fan |
| Noise: | <17 dBA |
| Manufacturer Part Number: | CIT-TFX-300W |
| EAN Number: | 5055492413260 |
| Has Mains Plug: | No |
