Description

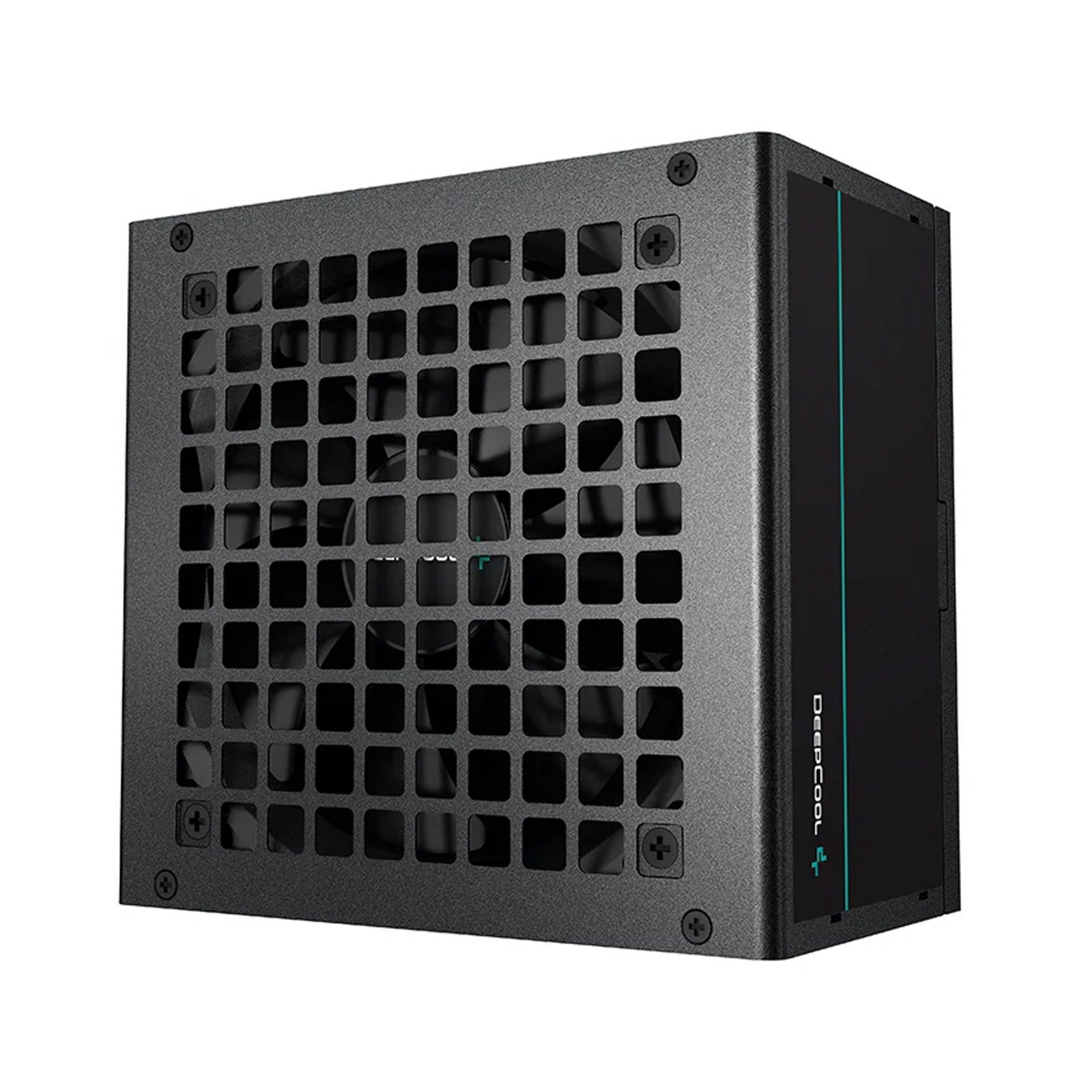

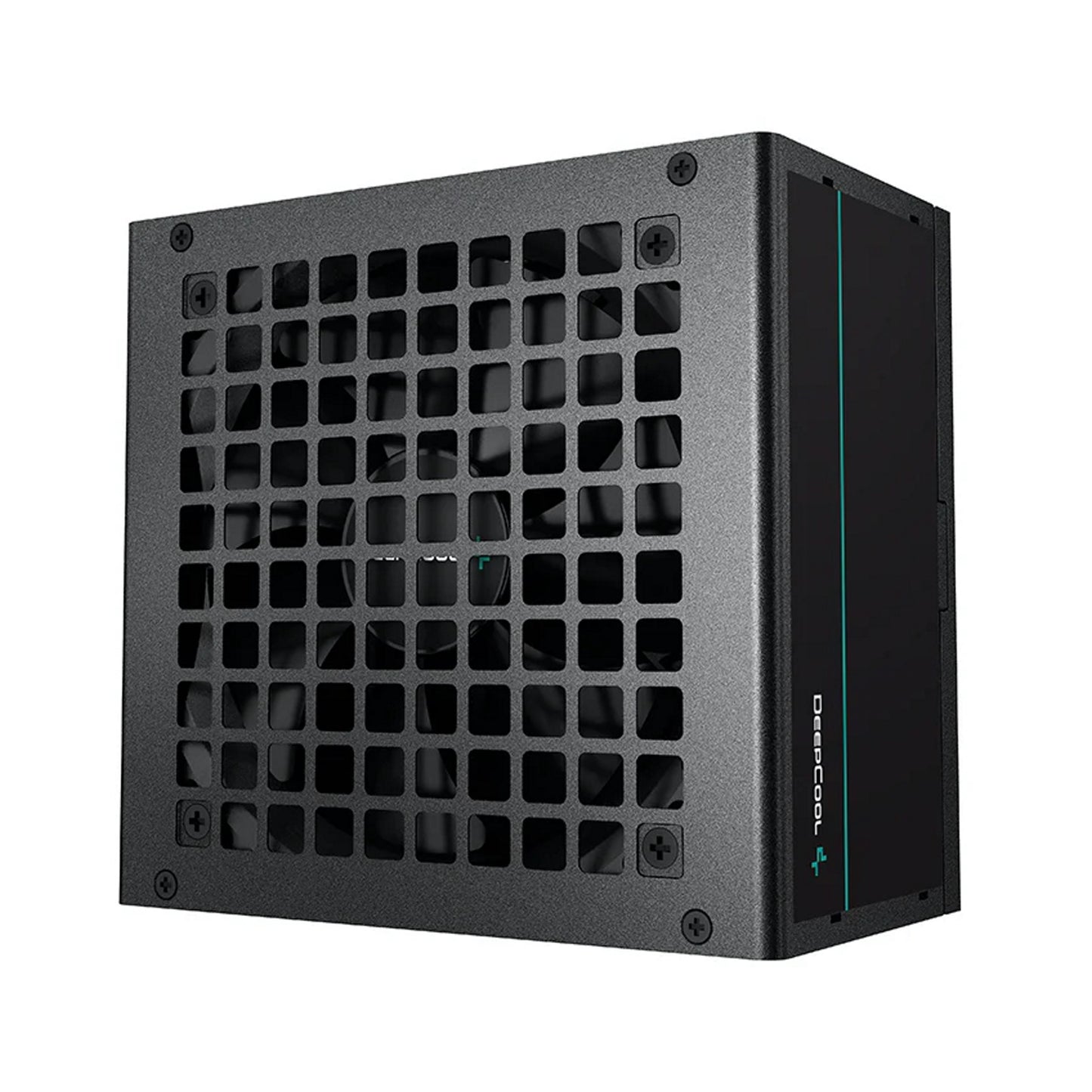

DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug, Flat Black Cables, Efficient & Affordable
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
Specs
Physical
| Fan Size | 120mm |
| Product Dimension ( W x L x H ) | 150 x 140 x 86mm |
Other
| Type | ATX 12V V2.4 |
| 80 PLUS Certifications | WHITE |
| Fan Bearing | Hydro Bearing |
| Topology | Active PFC + Double tube forward |
| Capacitors | Taiwan bulk capacitor |
| Power Good Signal | 100-500ms |
| Hold Up Time | =16ms (75% Load) |
| Efficiency | =85% Under Typical Load (50% Loading) |
| Protection | OPP/OVP/SCP/UVP |
| Operation Temperature | 0-40�C |
| Regulatory | CB/CCC/CE/UKCA/EAC/RCM/BIS |
| Regulation | ErP(2010) |
| Connections | 1 x Main Power Connector 24-Pin (20+4)1 x EPS 12V Connector 8-Pin (4+4)2 x PCIE 6+2 Pin (x1)6 x SATA (x2)2 x 4-Pin Peripheral (x2) |
| Master Carton Quantity | 5 |
