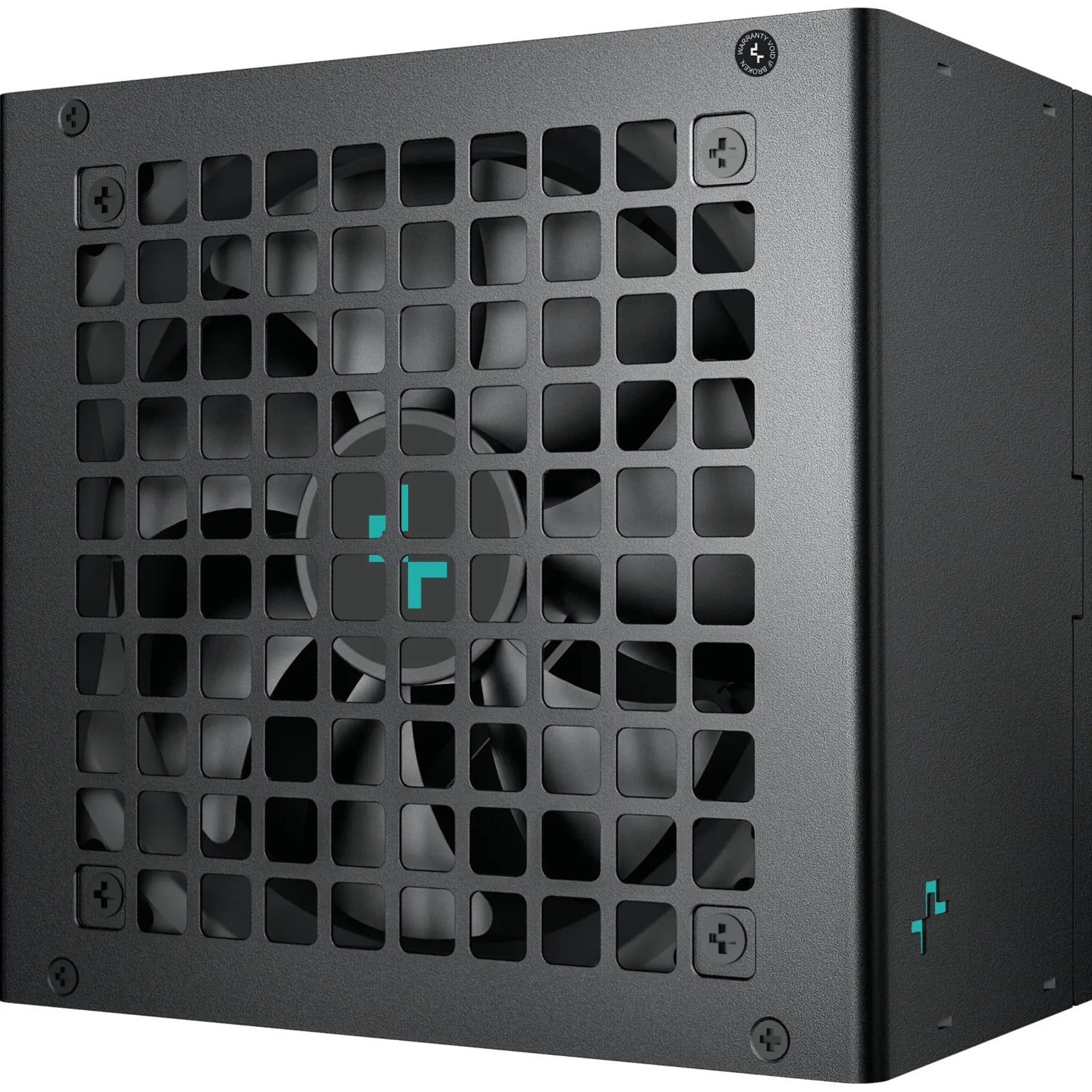

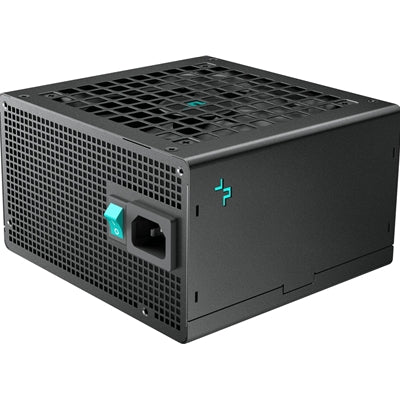

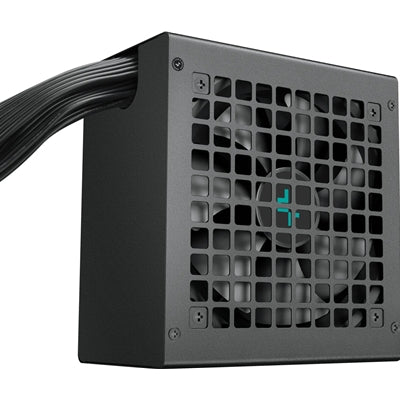

DeepCool PL650D 650W 80 Plus Bronze Power Supply with 120mm Hydro-Bearing Fan, ATX3.1 & PCIe 5.0 Support, Non-Modular Design PSU

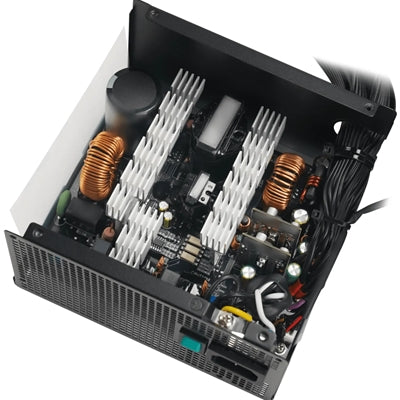

The DeepCool PL650D 80 Plus Bronze Power Supply is engineered to perfection, delivering stable and reliable power for mid-range to high-performance desktop systems. This power supply unit (PSU) is designed in compliance with INTELs ATX3.1 standard and features a native PCIe 5.0 power connector. With its streamline hydro-bearing fan and 80 Plus Bronze certification, the PL650D ensures optimal cooling, quiet operation, and high energy efficiency. Built with high-grade electrolytic capacitors and a well-thought-out dual-transistor forward topology, it guarantees top-notch durability and performance for years to come. Full SpecificationModel: PL650D Efficiency Certification:: 80Plus Bronze (=85% efficiency under typical loads at 50% loading)
Specs
Physical
| Colour: | Black |
| Dimensions: | 150x140x86mm (WxLxH) |
| Weight: | 1.75kg (3.86lb) |
| Material: | High-quality parts including electrolytic capacitors |
Other
| Power Capacity: | 650W |

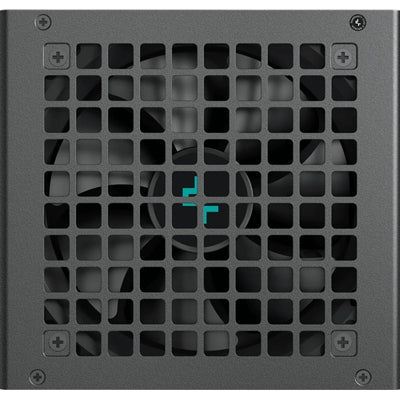

| Cooling: | 120mm hydro-bearing fan |
| Modular Design: | Non-modular |
| Connectors: | Main Power Connector: (20+4)Pin x 1CPU: (4+4)Pin x 2PCI-E: (6+2)Pin x 3Sata: x34Pin Peripheral: x112VHPWR (16Pin): x1 |
| Certifications and Safety Features: | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Type: | ATX12V V3.1 |
| Fan Bearing: | HYB (Hydro Bearing) |
| Topology: | Active PFC + DC to DC |
| Power Good Signal: | 100-150ms |
| Hold Up Time: | =16ms at Full Load |
| Operating Temperature: | 0 40 �C |
| Compliance: | ATX v3.1, EPS 2.92 |
| Warranty: | 5 years |
