Description

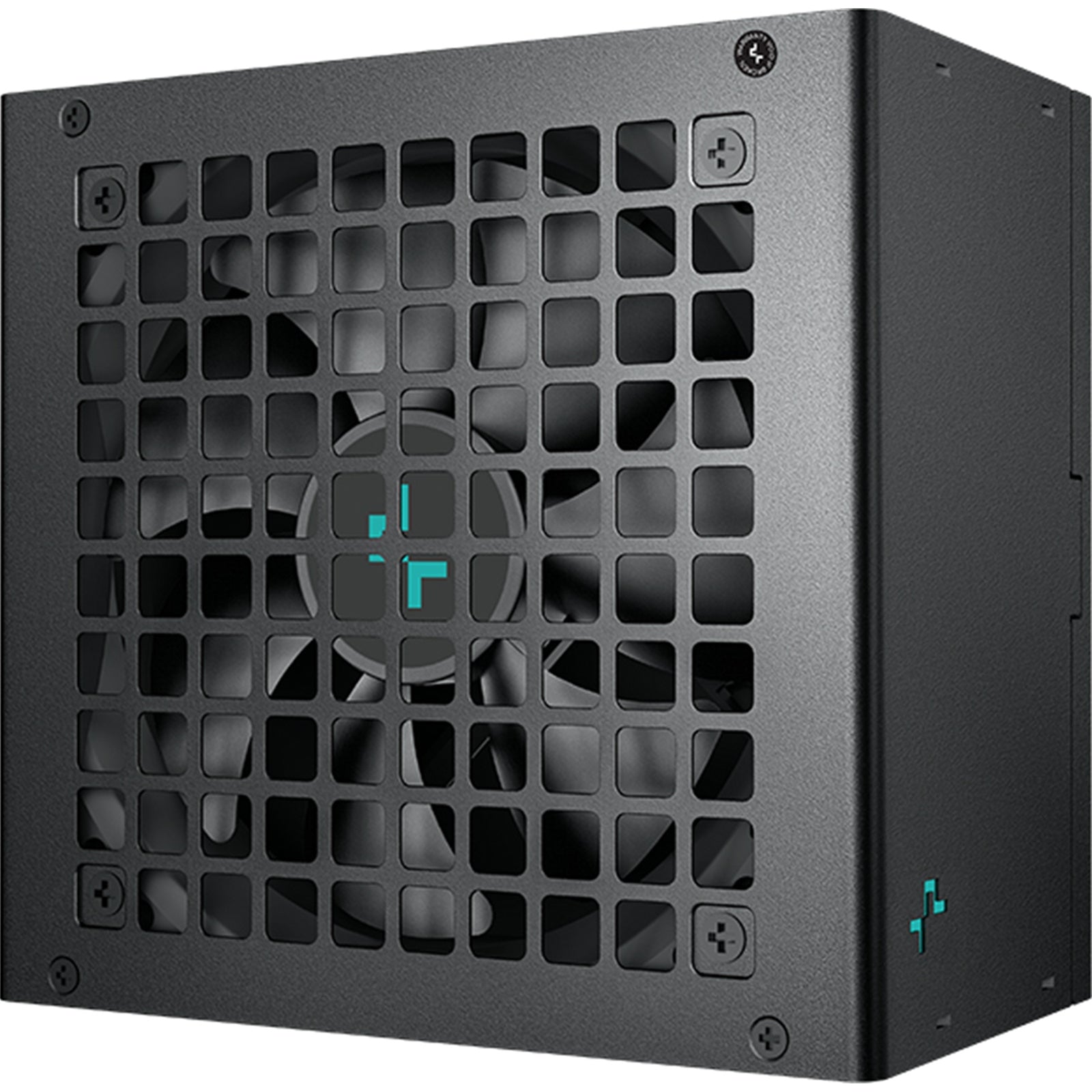

DeepCool PL750D 750W Power Supply, ATX12V V3.1, 80 PLUS Bronze, Non-Modular, 120mm Hydro Bearing Fan, 12VHPWR PCIe 5.0, 5-Year Warranty
The DeepCool PL750D is a 750W non-modular power supply unit (PSU) that complies with the Intel ATX12V V3.1 standard. Designed for reliability and efficiency, it features a 120mm hydro-bearing fan for optimal cooling and carries an 80 PLUS Bronze certification, ensuring at least 85% energy efficiency under typical loads. Protections:: Over Power Protection (OPP)Over Voltage Protection (OVP)Short Circuit Protection (SCP)Over Temperature Protection (OTP)Over Current Protection (OCP)Under Voltage Protection (UVP)Surge & Inrush Protection (SIP)No Load Operation (NLO) Regulatory Certifications:: CE, FCC, CCC, RCM, EAC, BIS, CAN ICES-003(B), NMB-003(B), TUV-RH Warranty:: Backed by a 5-year limited warranty, the DeepCool PL750D delivers stable, reliable power for both legacy and next-gen PC builds.
Specs
Physical
| Dimensions: | 150 mm (W) x 140 mm (L) x 86 mm (H) |
| Fan Size: | 120 mm |
Other
| Key Specifications: | Form Factor: ATX12V V3.1 |
| Efficiency Certification: | 80 PLUS Bronze |
| Fan Bearing: | Hydro Bearing |
| Topology: | Active PFC + DC to DC |
| Capacitors: | Chinese Electrolytic Capacitors |
| Hold-Up Time: | =16 ms |
| Efficiency: | =85% under typical load (50% loading) |
| Operating Temperature: | 0�C to 40�C |
| Environmental Compliance: | WEEE, RoHS |
| Mean Time Between Failures (MTBF): | 100,000 hours |
| Connectors: | 1 x 20+4 Pin ATX (Motherboard Power)2 x 4+4 Pin ATX12V (CPU Power)3 x 6+2 Pin PCIe (GPU Power)8 x SATA Power2 x 4-Pin Molex (Peripheral Power)1 x 16-Pin (12+4) 12VHPWR Connector (PCIe 5.0) |
| Special Features: | The inclusion of a 16AWG 12VHPWR cable enables support for next-generation GPUs with higher power demands. The PL750D also uses premium electrolytic capacitors to ensure enhanced durability and performance. |
