Description

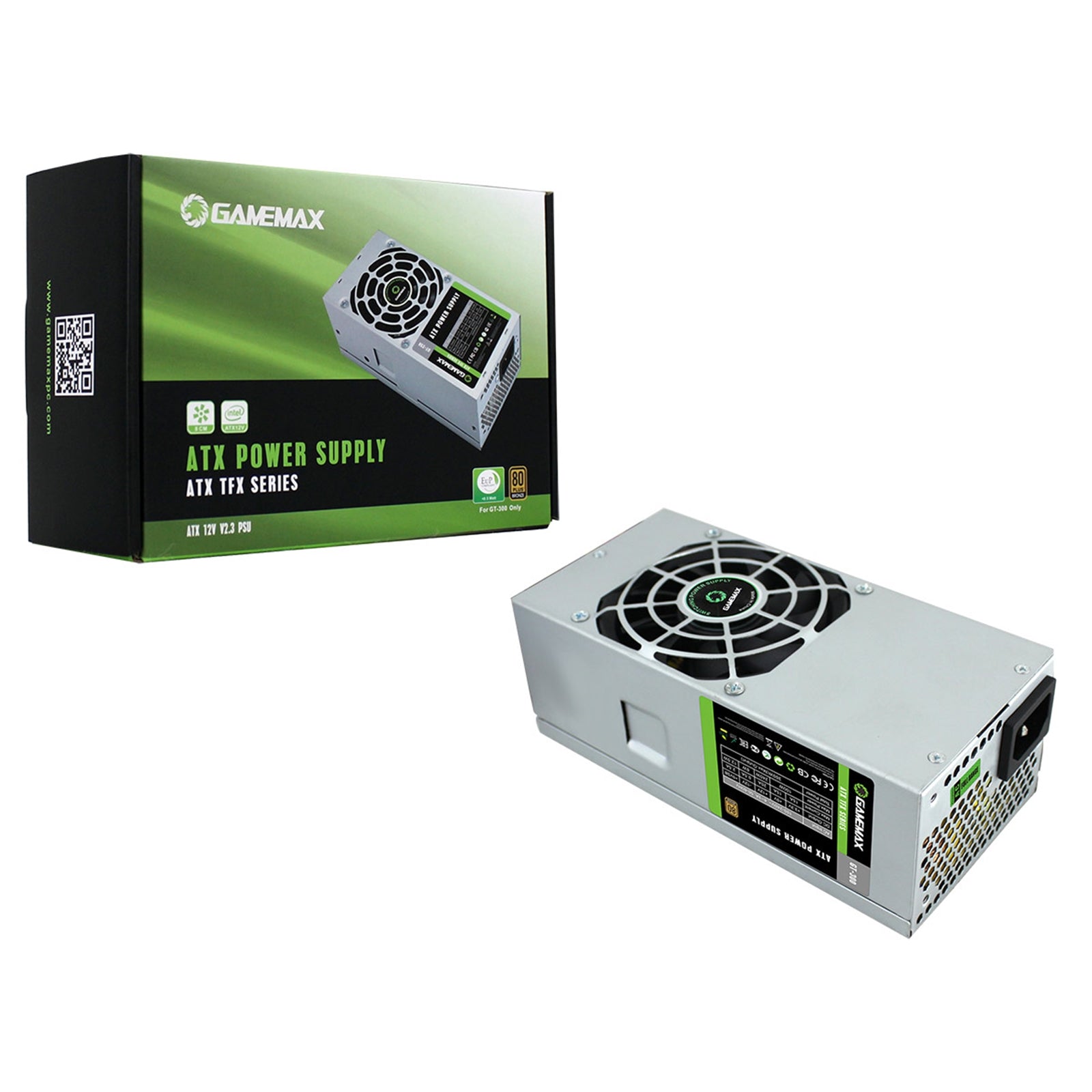

GameMax GT-300W 300W TFX Power Supply for Small Form Factor PCs, 80 Plus Bronze Efficient PSU with Quiet 80mm Cooling Fan and Active PFC, Ideal Replacement PSU for Slim Desktop Systems
The GameMax GT-300W is a compact 300W TFX power supply designed for small form factor desktops and slim PC builds. It delivers dependable performance with 80 Plus Bronze efficiency for reduced energy consumption and stable power output. The PSU includes active PFC for improved voltage stability and built-in protection features including OPP, OVP, UVP, and SCP. A quiet 80mm temperature-controlled fan ensures efficient cooling with low noise levels, and the honeycomb ventilation design improves airflow. The unit supports ATX12V 2.3 motherboards and includes essential connectors for modern compact PC systems.
Specs
Other
| General Specifications | Model: GameMax GT-300W (PSUGMXGT300TFX)Form Factor: TFXTotal Power: 300WEfficiency Certification: 80 Plus BronzeMTBF: 100,000 hoursActive PFC: YesProtections: OPP, OVP, UVP, SCPSafety Approvals: CE, FCC, CBWarranty: 2 Years |
| AC Input | Input Voltage: 100240VInput Current: 63AFrequency: 5060Hz |
| DC Output Rails | +3.3V: 15A+5V: 15A+12V: 20A-12V: 0.5A+5VSB: 2.5A |
| Power Timing | Power Good Signal: 100500msHold-Up Time: 140ms |
| Connectors | 1 x 20+4 Pin Motherboard Connector1 x 4+4 Pin CPU Connector3 x SATA Power Connectors1 x Molex 4-Pin Peripheral Connector |
| Physical Specifications | Dimensions: 85mm x 65mm x 175mmWeight: Approximately 1.06kg |
