GIGABYTE

GIGABYTE, GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE Power Supply - ATX 3.0 Standard, Fully Modular, Quiet 120mm Fan, Compact Design, : ATX 3.0

GIGABYTE, GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE Power Supply - ATX 3.0 Standard, Fully Modular, Quiet 120mm Fan, Compact Design, : ATX 3.0

SKU:GP-AE1000PM PG5 ICE

Regular price £164.58 GBP
Regular price Sale price £164.58 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
View full details

Description

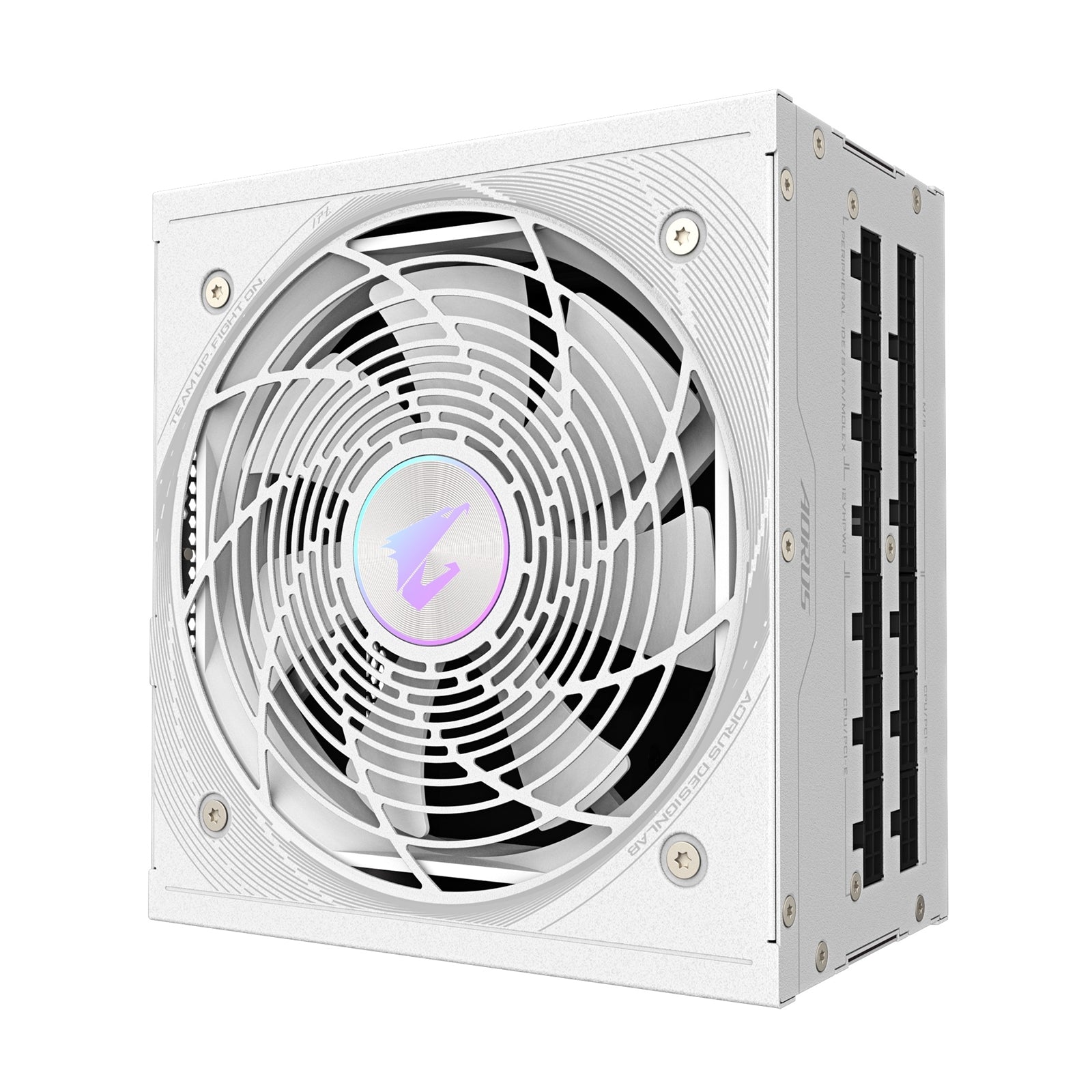

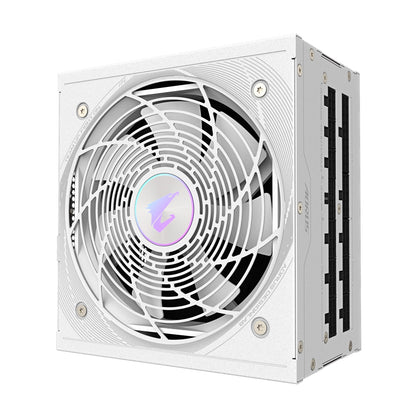

GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE Power Supply - ATX 3.0 Standard, Fully Modular, Quiet 120mm Fan, Compact Design

The AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE (GP-AE1000PM PG5) is a high-performance power supply unit designed for demanding applications. Here's a detailed description and specification: Cable Type: : High-quality, native 16-pin cable for PCIe Gen 5.0 compatibility

Specs

Chipset & Form Factor

Form Factor : ATX 3.0

Physical

Connections ATX/MB 20+4 Pin: 1 (650mm)CPU/EPS 4+4 Pin: 2 (700mm each)PCIe 16 Pin: 1 (700mm, for PCIe 5.0 graphics cards)PCIe 6+2 Pin: 6 - 2 (650mm + 150mm) 4 (750mm)SATA: 8 - 4 (600mm + 150mm) 4 (150mm)4 Pin Peripheral: 4 - 2 (500mm + 150mm) 2 (150mm)
Warranty : 10 years

Other

80 PLUS Platinum Certified : Ensures 92% efficiency at 50% load, reducing power waste, heat, and fan noise.Fully Modular Design: Allows for better airflow and improved thermal performance by using only the necessary cables.Compact Design: Measures just 140 mm in length, making it suitable for space-constrained chassis.High-Quality Components: Equipped with 100% Japanese capacitors for efficient performance and reliability.120mm Smart Fluid Dynamic Bearing (FDB) Fan: Reduces noise and extends lifespan by using oil film shock absorption technology.Powerful Single +12V Rail: Provides the best power output, stability, and compatibility for hardware, especially beneficial for overclocking.Protection Features: Includes OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection), and OCP (Over Current Protection).10-Year Warranty: Offers a long-term warranty adjusted according to different regions.
Output Power : 1000W
Efficiency : 80 PLUS Platinum
Modular Design : Fully Modular
Fan Type : 120mm Smart Fluid Dynamic Bearing (FDB) Fan
Protection : OVP, OPP, SCP, UVP, OTP, OCP
Capacitors : 100% Japanese capacitors
