Description

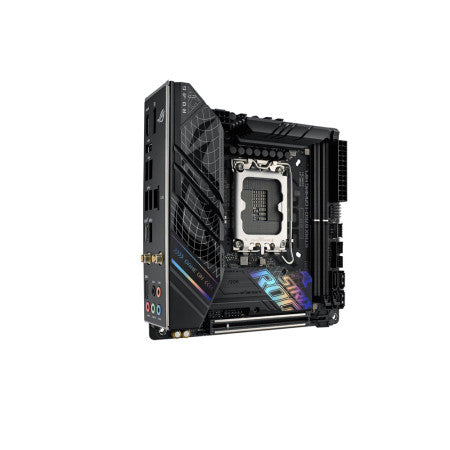

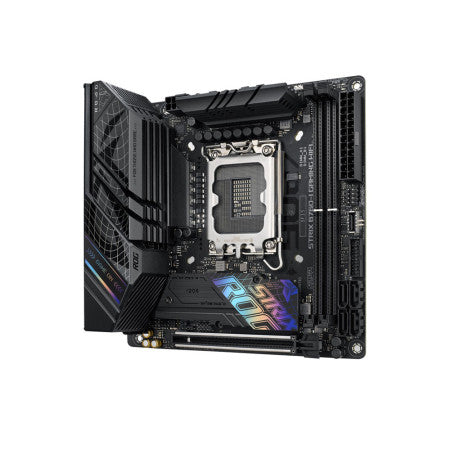

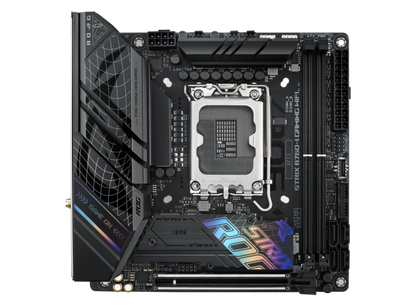

ASUS ROG STRIX B760-I GAMING WIFI | LGA1700 | Intel B760 | Mini-ITX | DDR5 | PCIe 5.0 | Wi-Fi 6E | Motherboard
ASUS ROG STRIX B760-I GAMING WIFI — Mini-ITX Motherboard Maximum performance in minimum space. The ROG STRIX B760-I GAMING WIFI packs an octet of power stages, PCIe 5.0, DDR5 up to 96GB, Wi-Fi 6E, Bluetooth 5.3, Intel 2.5GbE, and ROG SupremeFX 7.1 audio into a compact Mini-ITX form factor. Built for Intel 12th, 13th & 14th Gen processors, it’s the ultimate foundation for a high-performance small form factor build. ▼ Product Description Raptor Lake Power in Mini-ITX Eight power stages with a hefty cooling array deliver all the performance of Intel 12th, 13th & 14th Gen processors in a 17 x 17 cm footprint. Supports Intel Turbo Boost 2.0 and Turbo Boost Max 3.0. PCIe 5.0 & DDR5 The single PCIe 5.0 x16 slot is primed for the most powerful graphics cards available, while dual DDR5 DIMM slots support up to 96GB at speeds up to 7600 MT/s (OC) with Intel XMP and OptiMem II. Wi-Fi 6E & Bluetooth 5.3 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) covers 2.4GHz, 5GHz, and 6GHz bands for ultra-fast wireless connectivity, paired with Bluetooth 5.3 for peripherals and audio devices. Intel 2.5Gb Ethernet with LANGuard Intel® 2.5Gb Ethernet delivers fast, reliable wired networking, protected by ASUS LANGuard surge protection. ROG SupremeFX 7.1 Audio The S1220A CODEC with Savitech SV3H712 AMP delivers 120 dB SNR stereo playback and 113 dB SNR recording, with SupremeFX Shielding Technology and premium capacitors for audiophile-grade on-board audio. AURA Sync RGB One Addressable Gen 2 header and one Aura RGB header let you synchronise lighting across your ROG ecosystem via Armoury Crate. ▼ Technical Specifications Platform Model ROG STRIX B760-I GAMING WIFI SKU 90MB1D90-M1EAY0 Form Factor Mini-ITX (17 x 17 cm / 6.7" x 6.7") Socket Intel LGA1700 Chipset Intel B760 CPU Support Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron BIOS 128Mb Flash ROM, UEFI AMI BIOS OS Support Windows 11 64-bit, Windows 10 64-bit Memory Slots 2 x DIMM Max Capacity 96GB Type DDR5, Non-ECC, Un-buffered Max Speed (OC) 7600 MT/s Native Speed 4800 / 5200 / 5400 / 5600 MT/s Channels Dual Channel Profiles Intel XMP, ASUS OptiMem II Storage M.2_1 (CPU) Key-M, type 2260/2280, PCIe 4.0 x4 M.2_2 (Chipset) Key-M, type 2242/2260/2280, PCIe 4.0 x4 SATA Ports 4 x SATA 6Gb/s RAID RAID 0/1/5/10 (Intel RST) Expansion Slots PCIe x16 1 x PCIe 5.0 x16 (CPU) Networking Ethernet Intel® 2.5Gb (ASUS LANGuard) Wi-Fi Wi-Fi 6E — 2x2, 802.11 a/b/g/n/ac/ax, 2.4 / 5 / 6 GHz Bluetooth Bluetooth 5.3 USB Rear USB 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 3 x USB 2.0 Type-A Front USB 1 x USB 3.2 Gen 2 Type-C connector, 1 x USB 3.2 Gen 1 header (2 ports), 1 x USB 2.0 header (2 ports) Audio Codec ROG SupremeFX S1220A — 7.1 Surround HD Audio Amplifier Savitech SV3H712 SNR Playback 120 dB SNR Recording 113 dB Bit Depth / Sample Rate Up to 32-bit / 192 kHz Features SupremeFX Shielding, premium capacitors, impedance sense Video Output DisplayPort 1 x DisplayPort 1.4 (4K@60Hz) — requires iGPU HDMI 1 x HDMI 2.1 (4K@60Hz) — requires iGPU Internal Connectors Fan Headers 1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan, 1 x 4-pin AIO Pump Power 1 x 24-pin ATX, 1 x 8-pin +12V CPU RGB 1 x Addressable Gen 2 header, 1 x Aura RGB header Other Clear CMOS, AAFP, S/PDIF Out, Speaker, Thermal Sensor, System Panel (10-1 pin) ▼ What's Included Package Contents ✓ ASUS ROG STRIX B760-I GAMING WIFI Motherboard ✓ 2 x SATA 6Gb/s cables ✓ 1 x ROG USB 2.0 splitter cable ✓ 1 x Panel cable ✓ 1 x Thermal pad for M.2 ✓ 1 x ASUS Wi-Fi moving antennas ✓ 1 x Cable ties package ✓ 1 x M.2 Rubber Package ✓ 2 x Screw packages for M.2 SSD ✓ 1 x M.2 bracket ✓ 1 x ROG key chain ✓ 1 x ROG STRIX stickers & thank you card ✓ 1 x User manual ▼ Why Choose This Product Big Performance. Small Footprint. ✅ Mini-ITX — 17 x 17 cm, built for compact SFF builds ✅ Intel LGA1700 — supports 12th / 13th / 14th Gen Core ✅ PCIe 5.0 x16 — ready for the latest GPUs ✅ DDR5 up to 96GB / 7600 MT/s OC with XMP & OptiMem II ✅ Wi-Fi 6E (6GHz) + Bluetooth 5.3 ✅ Intel 2.5Gb Ethernet with LANGuard ✅ ROG SupremeFX 7.1 — 120 dB SNR audiophile audio ✅ AURA Sync RGB ecosystem
