Description
Professional Tower with Intel i7, 14th Gen, 20 Core 5.60GHz, 1TB Kingston NVMe, 4TB HDD Storage, 64GB DDR5 Kingston RAM, RTXA1000 8GB Quadro Graphics, Wi-Fi 6, Windows 11 Pro
Built for professional and Home creators. purpose built for use with CAD, Adobe or creator software. Fitted with Intel's powerful i9, 16 Core Processor, 64GB of Fast RAM, an Ultra fast NVMe and 4TB of back up storage, NVIDIA Quadro graphics card and Windows 11 PRO All backed by an industry leading 3 Year Warranty. Professional Tower with Intel i7, 14th Gen, 20 Core 5.60GHz, 1TB Kingston NVMe, 4TB HDD Storage, 64GB DDR5 Kingston RAM, RTXA1000 8GB Quadro Graphics, Wi-Fi 6, Windows 11 Pro Operating System: Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date Wireless Communication moduleIntel Wi-Fi 6E AX210 (PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel Wi-Fi 6E AX211 (PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateRealtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Warranty: 3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
Specs
Processor
| Processor | Intel Core i7 14700KF 20 Core Processor, 28 Threads, 2.5GHz up to 5.6GHz Turbo Raptor Lake Socket LGA 1700 33MB Cache |
| Processor Cores | 20 |
| Processor Threads | 28 |
| Core Clock Speed | 2.50GHz |
| Core Boost Speed | 5.60GHz |
| CPU Cooling | be quiet! Silent Loop 2 AiO Liquid CPU Cooler, Universal Socket, 120mm Radiator, 2 x Silent Wings 3 120mm PWM High Speed 2200RPM Black Cooling Fan, Addressable RGB LED Pump Head with Powerful 3 Chamber Design to Significantly Reduce Turbulences & Noise |
Memory
| Memory | Kingston FURY Beast KF552C40BBK2-64 64GB System Memory DDR5, 5200MHz, 2 x 32GB, CL40-40-40Voltage: 1.25VLatency Timing: CL40Speed: 5200MT/s (PC5-41600)2 x 32GB DIMM MemoryIntel XMP Profile Support |
| Memory Configuration | 2 x 32GB 4 Lanes (2 occupied) |
Storage Controllers
| SSD Drive | Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280Data storage life320 TBWMTBF1,500,000 hoursInterfaces/PortsPCIe Gen4 x4 NVMe |
| Hard Drive | Seagate Ironwolf NAS ST4000VN006 4TB 3.5" 5400RPM 256MB Cache SATA III Internal Hard Drive |
| Optical Drive | No Optical Drive Fitted |
| Rear I/O | 3 x USB 3.2 Gen 1 ports5 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x HDMI port (Note)1 x DisplayPort (Note)1 x RJ-45 port3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers3 x addressable LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |

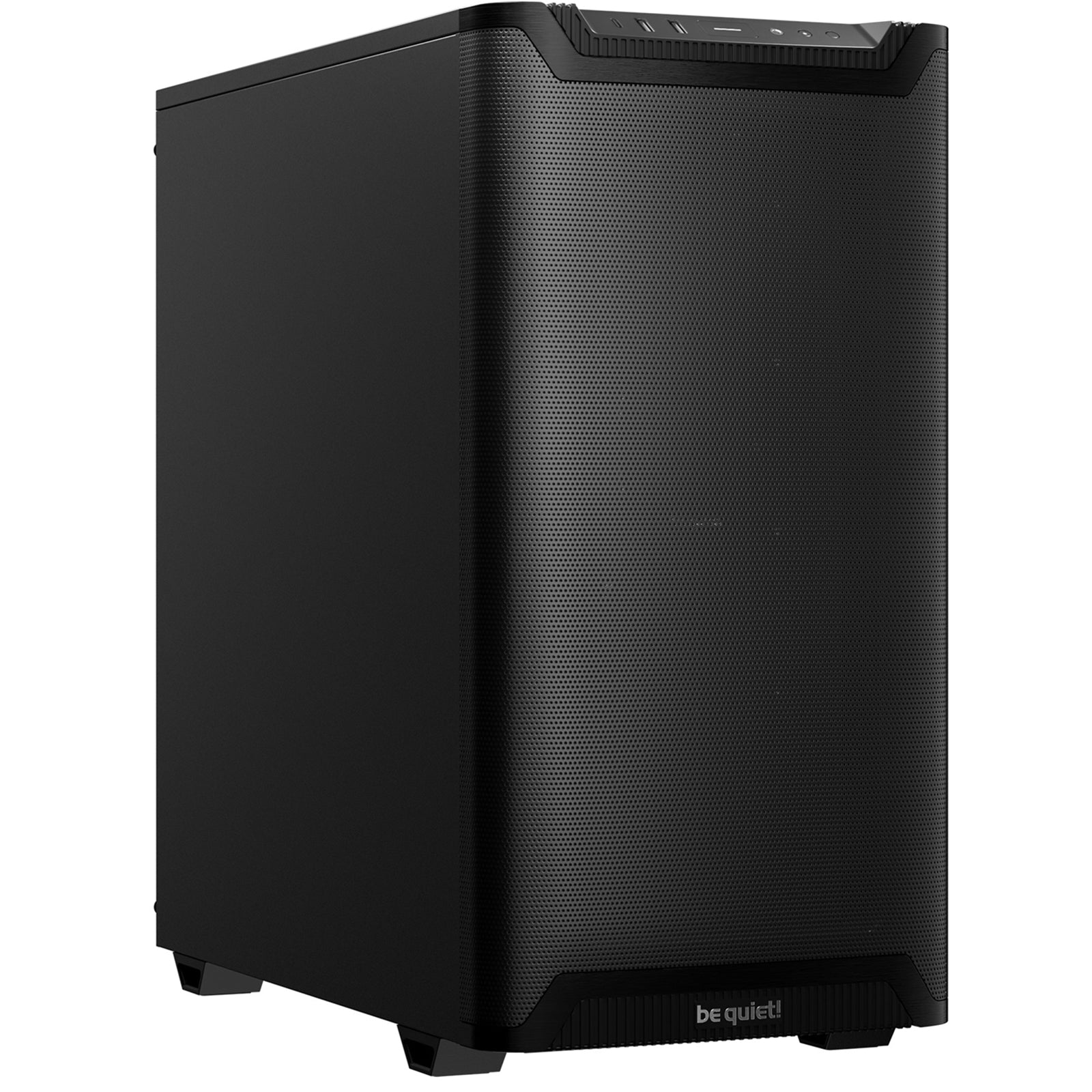

| Chassis | be quiet! Pure Base 501 Case, Airflow Black, Mid Tower, 2 x USB Type-A, 1 x USB Type-C, 2 x Pure Wings 2 140mm Black PWM Fans Included, Sleek front panel and airflow |
| IO Ports | USB 3.2 Gen. 2 Type C2 x USB 3.0 Type APowerReset |
Network
| Power Supply | be quiet! 650W PURE POWER 12, 80 PLUS Gold, ATX 3.1 compliant and PCIe 5.1 compatible,10-year manufacturer's warranty1 x 12VHPWR1 x 4+4-pin CPU1 x 4 Pin CPU1 x 4-pin Molex2 x 6+2-pin PCIe5 x SATA |
| Motherboard | Gigabyte B760M GAMING X WIFI6E GEN 5 INTEL Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E |
| Expansion Slot | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
Physical
| Package Weight | 10.4 kg |
Other
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 6000MB/SWrite: Up to 4000MB/S |
| Graphics | PNY NVIDIA Professional RTX A1000 Graphics Card, 8GB GDDR6, 2307 CUDA Cores, 72 Tensor Cores, Single Fan Low Profile, 4x mini-DisplayPortCUDA Cores2304Tensor Cores72RT Cores18Single Precision Performance6.74 TFLOPSRT Core Performance13.2 TFLOPSTensor Performance53.8 TFLOPS2GPU Memory8 GB GDDR6Memory Interface128-bitMemory Bandwidth192 GB/seccSystem InterfacePCI Express 4.0 x83Display Connectors4x DisplayPort 1.4a |
| Graphics Card I/O | Mini DisplayPort x 4Comes with Mini DP to Full DP adapters |
| Card Reader | No Card Reader Fitted |
