Description
LOGIX Intel Core Ultra 7 AI Powered 20 Core, 3.90GHz (5.50GHz Boost) NPU with 13 TOPS, 32GB Kingston DDR5 Memory, 1TB Kingston NVMe, Gigabyte RTX 5060 8GB 4xMonitor, 2 x 2.5GB LAN, Windows 11 Pro
Whether you're building an AI-powered workstation, a CCTV monitoring hub, or simply need a reliable, high-performance PC for your home office, the LOGIX CCT-U733P is built to handle it all quietly, efficiently, and securely. Smart Power for Work, Security & Everyday Use: The LOGIX CCT-U733P is a powerful, desktop PC built for modern home offices, small businesses, and CCTV monitoring setups. Whether you're managing multiple security feeds, working across several apps, or tapping into AI-powered tasks, this system is designed to keep up quietly and efficiently. Powered by Next-Gen Intel Core Ultra: Featuring the Intel Core Ultra 7 265K processor with 20 cores and 20 threads, this PC delivers ultra-responsive performance for multitasking and productivity. Its built-in AI NPU offloads background tasks like noise filtering and auto-framing, freeing up your CPU and GPU for smoother performance overall. Built in the UK, Backed by Warranty: Hand-assembled in the UK with trusted components, the CCT-U733P is backed by a 3-year parts and collection warranty for total peace of mind. NPU Specifications: NPU Name: Intel AI BoostNPU Peak TOPS (Int8) 13Sparsity Support YesWindows Studio Effects Support YesAI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN Security & Reliability: Intel Standard Manageability (ISM) : YesIntel Control-Flow Enforcement Technology : YesIntel AES New Instructions : YesSecure Key : YesIntel OS Guard : YesIntel Trusted Execution Technology : YesExecute Disable Bit : YesIntel Boot Guard : YesMode-based Execute Control (MBEC) : YesIntel Virtualization Technology : Yes Core Clock2512 MHz (Reference card : 2497MHz)CUDA Cores3840Memory Clock28 GbpsMemory Size8 GBMemory TypeGDDR7Memory Bus128 bitCard BusPCI-E 5.0Digital max resolution7680x4320Multi-view4 Operating System: Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date Warranty: 3 Years Parts & Labour Including Collect and Return (UK mainland only)
Specs
Processor
| Processor | Intel Core Ultra 7 265KF 20 Core, 20 Threads, 3.9GHz up to 5.5GHz Arrow Lake Processor LGA 1851, 36MB Cache, 125W, 250W Maximum Turbo Power |
| Processor Cores | 20 |
| Processor Threads | 20 |
| Core Clock Speed | 3.90GHz |
| Core Boost Speed | 5.50GHz |
Memory
| Memory | Kingston KCP556UD8-32 32GB (1x 32GB) DIMM System Memory, 5600MHz, DDR5, CL46, Intel XMPVoltage: 1.1VSpeed: 5600MT/s 1 x 32GB DIMM MemoryIntel XMP Profile Support |
| Memory Configuration | 1 x 32GB 4 Lanes (1 occupied) |
Storage Controllers
| Fast Storage & Clean Setup | A 1TB Kingston NVMe SSD ensures fast load times and quick access to your files. Preinstalled with Windows 11 Pro, fully updated and bloatware-free, the system is ready to go out of the box no unnecessary software to slow you down. |
| SSD Drive | Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/sForm FactorM.2 2280InterfacePCIe 4.0 x4 NVMeCapacity1TBSequential Read6000MB/sSequential Wrire4000MB/sNAND3DEndurance (Total Bytes Written)320TB |
| Hard Drive | No Additional Drive Fitted2 x 2.5" or 3.5" Drive Bays Available For Expansion |
| Optical Drive | No Optical Drive Fitted |
| Rear I/O | 1 x PS/2 keyboard/mouse port1 x HDMI port (Note)1 x DisplayPort (Note)1 x USB Type-C� port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x RJ-45 port3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header2 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C� header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |

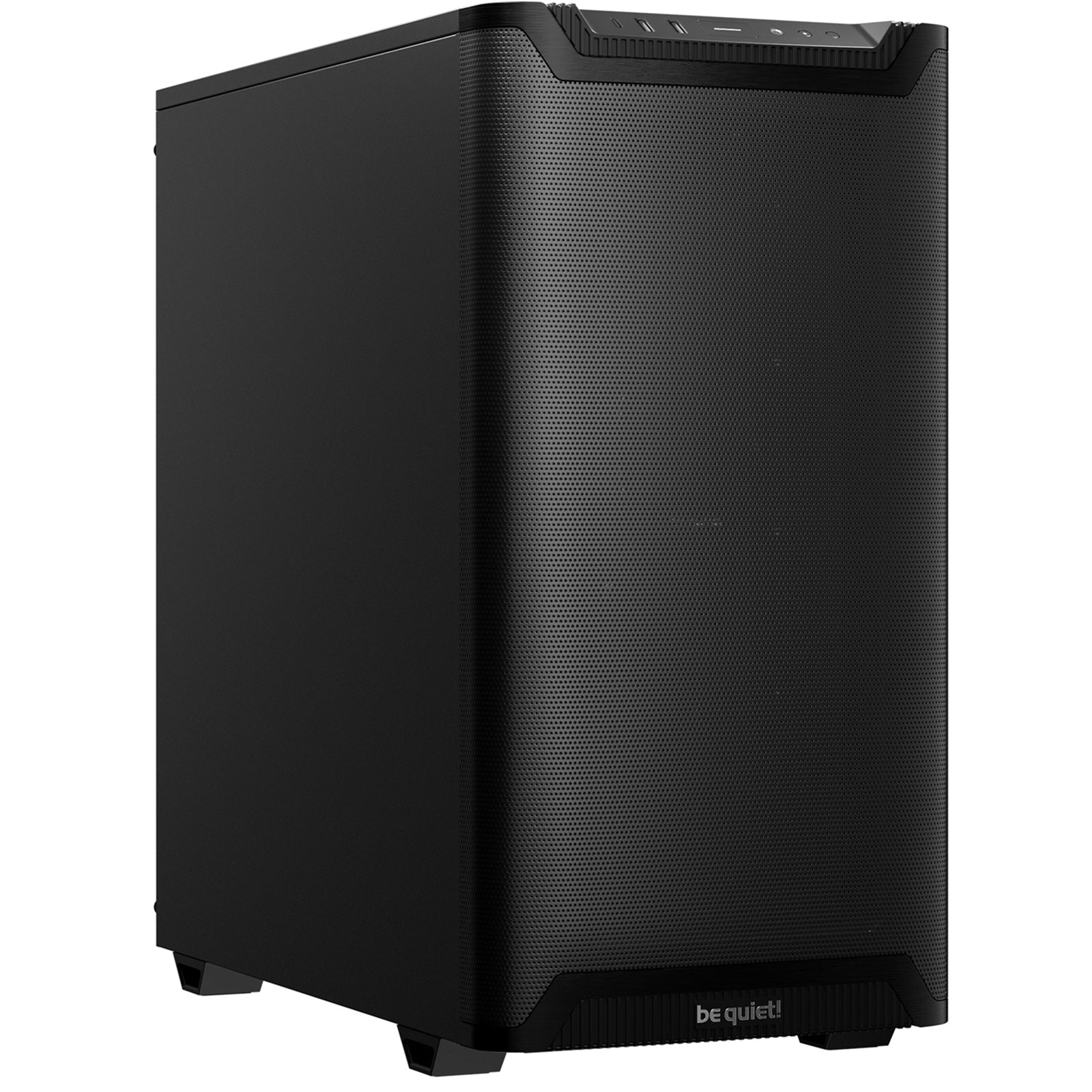

| Chassis | be quiet! Pure Base 501 Airflow Black ATX Mid Tower Case with USB-A, USB-C, 2 x Pure Wings 2 140mm Black PWM Fans, Sleek Front Panel and Airflow Cover |
| IO Ports | 2 x USB 3.01 x USB-C1 x AudioPowerReset |
Network
| Networking: | Wired:2 x 2.5Gbps GbE LANIntel Wi-Fi 6E AX211 (PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standardRealtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard |
| Power Supply | DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug1 x Main Power Connector 24-Pin (20+4)1 x EPS 12V Connector 8-Pin (4+4)2 x PCIE 6+2 Pin (x1)6 x SATA2 x 4-Pin Peripheral |
| Motherboard | Gigabyte B860 EAGLE WIFI6E Intel 1851 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E |
| Expansion Slot | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4) |
Physical
| Package Weight | 8.9 kg |
Other
| Built for Multi-Screen CCTV & Business Use | Equipped with an NVIDIA GeForce RTX 5060 graphics card, the CCT-U733P supports up to 4 monitors and 16 camera feeds in up to 8K resolution. Perfect for CCTV monitoring or high-resolution multi-screen work, it offers 1 HDMI and 3 DisplayPort outputs for flexible display setups. |
| Operating System: | Windows 11 ProProcessor: Intel Core Ultra 7 - 3.90GHz (5.50GHz boost) 20-cores & 20 threadsMemory (RAM): Kingston Technology 32GB DDR5 (upgradeable to 128GB DDR5 additional memory slot available)Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSDStorage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5"Graphics: Gigabyte Nvidia GeForce RTX 5060 OC 8GB Graphics Card with 1 x HDMI 2.1 & 3 x DisplayPort 1.4 portsMotherboard: B860 EAGLE WIFI6ECase: Be Quiet 501 Pure BaseConnections: Front 2 x USB 3.01 x HD Mic/AudioBack: 1 x PS/2 keyboard/mouse port3 x DisplayPort1 x HDMI port1 x USB Type-C port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports on the back panel2 x RJ-45 port2 x antenna connectors (2T2R)3 x audio jacks |
| Warranty: | 3 years - parts and collection included (UK mainland only) |
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 6000MB/SWrite: Up to 400MB/S |
| Graphics | Gigabye NVIDIA GeForce RTX 5060 WINDFORCE MAX OC 8G GDDR7 Graphics Card, 3840 CUDA Cores, 2512 MHz Core Clock, Dual Fan |
| Graphics Card I/O | DisplayPort 1.4a x 3HDMI 2.1 x 1 |
| Card Reader | No Card Reader Fitted |
