Description

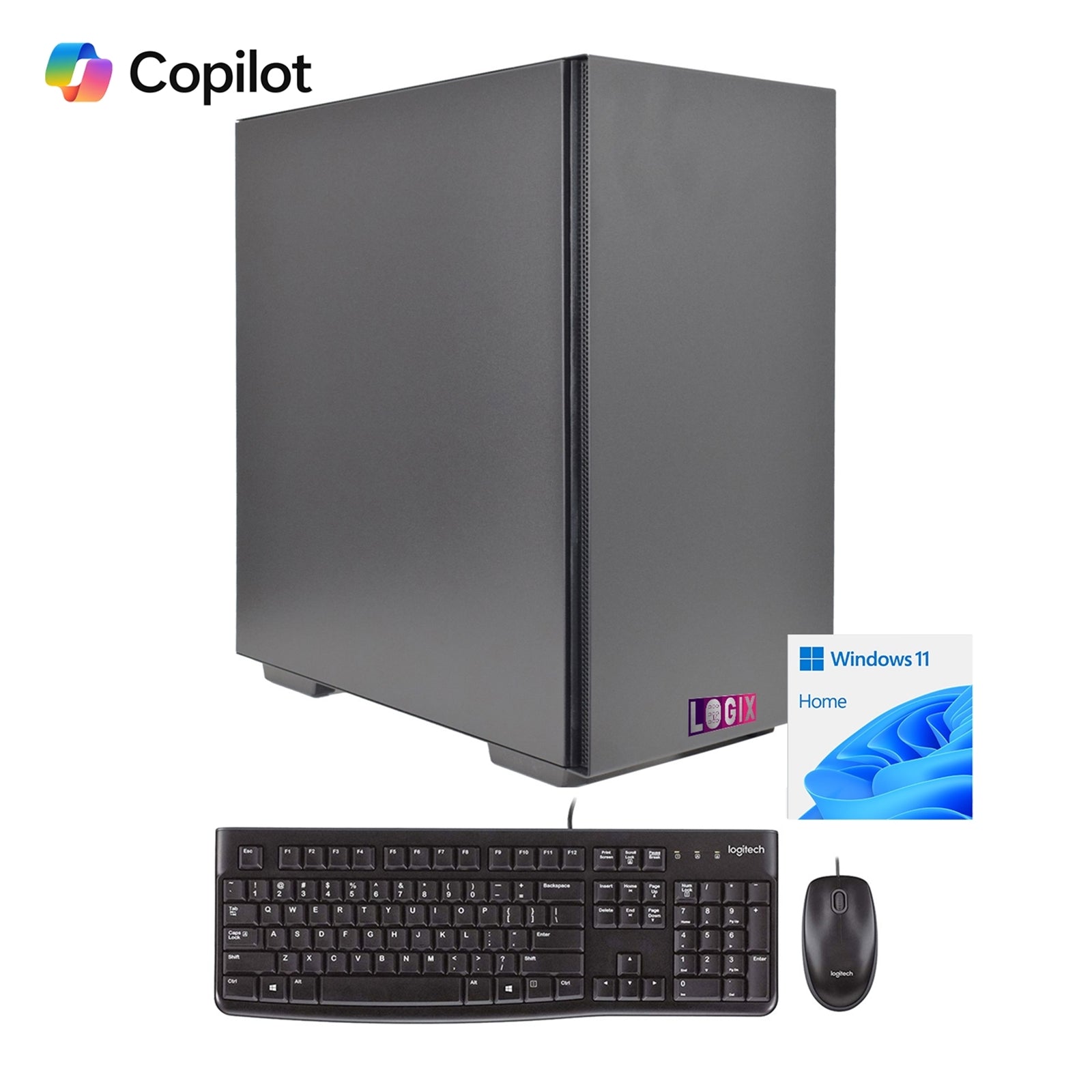

LOGIX Intel Core i3 14th Gen Quad Core 16GB RAM with 500GB SSD Wireless Family Desktop PC with Windows 11 Home & Keyboard & Mouse
From homework to entertainment and everything in between, the LOGIX Family PC is your households go-to machine powerful, practical, and ready to go right out of the box. Built for Homework, Streaming, and Everyday Life: The LOGIX Family PC is a powerful and great-value desktop built for every member of the household. Whether its homework, online learning, streaming your favourite shows, browsing the web, or keeping in touch with loved ones, this PC handles it all quickly, quietly, and reliably. Built to Last, Backed by Warranty: Hand-built to high standards using trusted components, the LOGIX Family PC is designed to grow with your households needs and it's backed by a 3-year parts and collection warranty for complete peace of mind. Operating System: Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/g/b 2.4 GHzBluetooth 5.2 WLAN Signal Rate:5 GHz11ax: Up to 1201 Mbps(dynamic)11ac: Up to 867 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11a: Up to 54 Mbps(dynamic) 2.4 GHz11ax: Up to 574 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic) Warranty: 3 Years Parts & Labour Including Collect and Return (UK mainland only)
Specs
Processor
| Processor | Intel Core i3 14100 4 Core Processor 8 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 12MB Cache, 60W, Maximum Turbo Power 110W, Intel UHD 730 Graphics |
| Processor Cores | 4 |
| Processor Threads | 8 |
| Core Clock Speed | 3.50GHz |
| Core Boost Speed | 4.70GHz |
Memory
| Memory | Kingston ValueRAM 16GB No Heatsink DDR4 3200MHz System MemoryVoltage: 1.20VLatency Timing: CL22Speed: 3200MHz (PC4-25600)1 x 8GB DIMM MemoryIntel XMP Profile Support |
| Memory Configuration | 2 x 8GB 2 Lanes (2 occupied) |
Storage Controllers
| SSD Drive | Kingston NV2 (SNV2S/500G) 500GB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 3500 MB/s, Write 2100 MB/sData storage life160 TBWMTBF1,500,000 hoursInterfaces/PortsPCIe Gen4 x4 NVMe |
| Hard Drive | No Additional Drive Fitted |
| Optical Drive | No Optical Drive Fitted |
| Rear I/O | 1 x PS/2 keyboard/mouse port1 x D-Sub port2 x DisplayPorts1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper1 x chassis intrusion header |
| Chassis | DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Solid Side Panels, Micro ATX |
| IO Ports | 2 x USB 3.0HD Mic/AudioPowerReset |
Network
| Power Supply | DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% EfficiencyMain Power Connector 24 (20+4) Pin x 1EPS 12V Connector 8 (4+4) Pin x 1PCI-E (6+2) Pin x 2SATA x 34 Pin Peripheral x 1 |
| Motherboard | Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port |
| Expansion Slot | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
Physical
| Package Weight | 6.9 kg |
Other
| Ready for Work, Play & Everything in Between | Powered by a 14th Gen Intel Core i3 processor and 16GB of Kingston DDR4 RAM, this PC offers smooth multitasking for everything from schoolwork to after-hours work tasks. The 500GB Kingston NVMe SSD ensures fast start-up times and quick file access, so no one is left waiting. |
| Flexible, Fast & Family-Friendly | The compact DeepCool micro-ATX case fits neatly into any room, while Wi-Fi 6 and wired Ethernet options give you flexible placement without sacrificing internet speed. A Logitech keyboard and mouse are included, so its ready to go out of the box. |
| Operating System: | Windows 11 HomeProcessor: 14th Gen Intel Core i3-14100Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4 additional memory slot available)Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSDGraphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)Motherboard: Gigabyte H610M S2H V2Case: Deep Cool Micro TowerConnections: Front 2 x USB-A 3.03.5mm HD microphone & audioBack: 2 x PS/21 x VGA2 x DisplayPort1 x HDMI2 x USB-A 3.2 Gen 14 x USB-A 2.01 x RJ-45 Ethernet3 x 3.5mm AudioNetworking: Wired: Realtek 1Gbps GbE LANWireless: TP-Link Archer AX1800 Dual Band Wi-Fi 6Bluetooth: Version 5.2Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse Warranty: 3 years - parts and collection included (UK mainland only) |
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 3500MB/SWrite: Up to 2100MB/S |
| Graphics | Intel UHD Graphics 730Graphics Base Frequency300 MHzGraphics Max Dynamic Frequency1.40 GHzGraphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1Execution Units32Max Resolution (HDMI)4096 x 2160 @ 60HzMax Resolution (DP)7680 x 4320 @ 60Hz |
| Graphics Card I/O | No Graphics Card Fitted. Uses Intel On-Chip Graphics |
| Card Reader | No Card Reader Fitted |
