Description

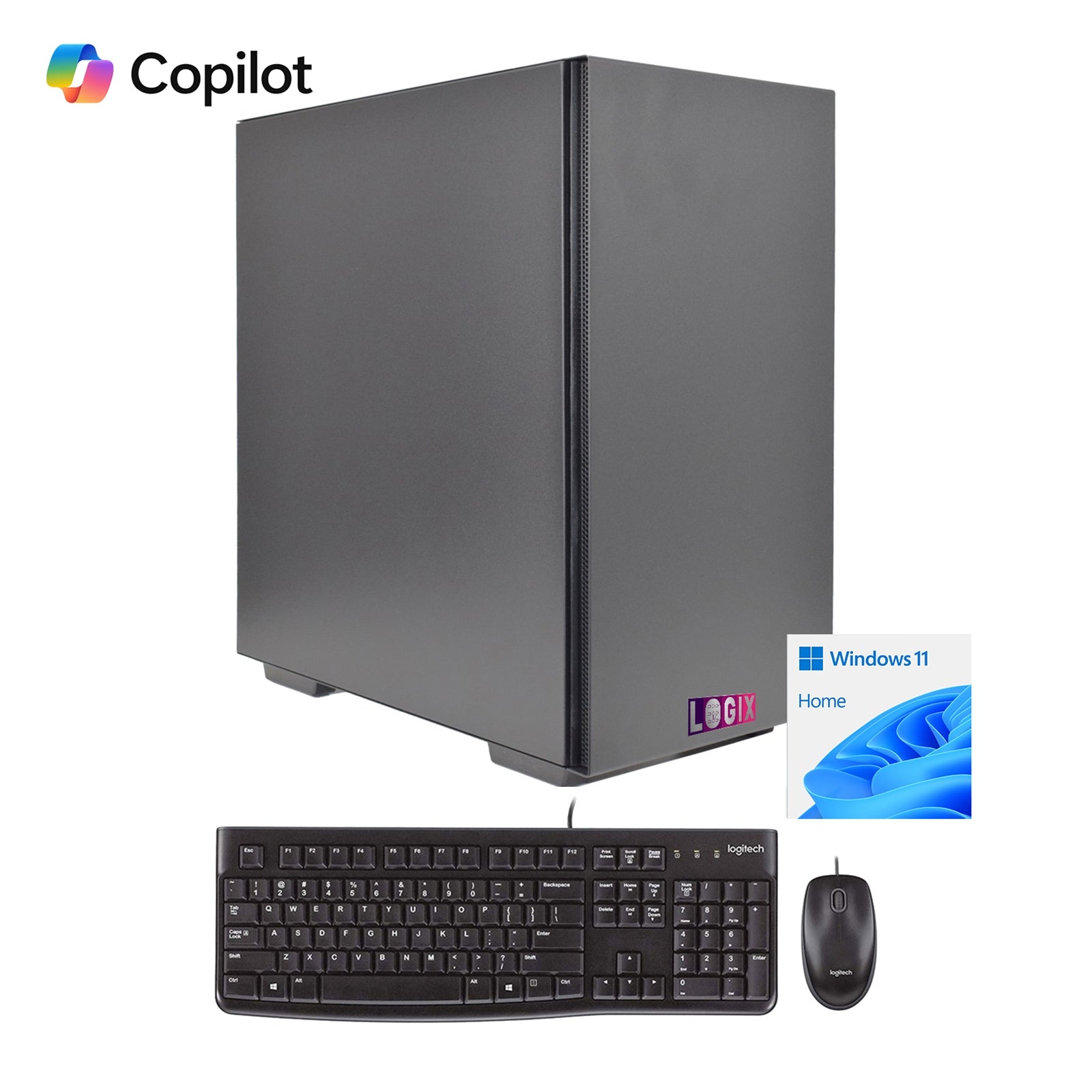

LOGIX Intel i7-14700 2.10GHz (5.30GHz Boost) 20 Core 28 threads. 32GB Kingston RAM, 1TB Kingston NVMe, Wi-Fi 6, Windows 11 Home + FREE Keyboard & Mouse
The Ideal Desktop PC for Demanding Home and Business Use. The LOGIX DC-716WH combines power, reliability, and compact design to meet the needs of professionals, creatives, and families alike. Experience high performance without compromise. Ready to Use Out of the Box: Windows 11 Home comes preinstalled, fully updated, and bloatware-free, so you wont waste time removing unnecessary software. A Logitech MK120 keyboard and optical mouse are included to get you started immediately. Built to Last with Trusted Components: Hand-built in the UK with premium components from world-renowned brands, this PC is designed for longevity and future-proof performance. A 3-year parts and collection warranty ensures peace of mind if anything goes wrong, help is just a call away. Security & Reliability: Intel vPro Eligibility Intel vPro Enterprise, Intel vPro Essentials Intel Threat Detection Technology (TDT) : YesIntel Active Management Technology (AMT) : YesIntel Standard Manageability (ISM) : YesIntel One-Click Recovery : YesIntel Hardware Shield Eligibility : YesIntel Control-Flow Enforcement Technology : YesIntel Total Memory Encryption - Multi Key : YesIntel Total Memory Encryption : YesIntel AES New Instructions : YesSecure Key : YesIntel OS Guard : YesIntel Trusted Execution Technology : YesIntel Boot Guard : YesIntel Stable IT Platform Program (SIPP) : Yes Operating System: Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date Warranty: 3 Years Parts & Labour Including Collect and Return (UK mainland only)
Specs
Processor
| Processor | Intel Core i7 14700 20 Core Processor, 28 Threads, 2.1GHz up to 5.3GHz Turbo Raptor Lake Socket LGA 1700 33MB Cache |
| Processor Cores | 20 |
| Processor Threads | 28 |
| Core Clock Speed | 2.10GHz |
| Core Boost Speed | 5.30GHz |
Memory
| Memory | Kingston Fury Beast KF432C16BBK2/32 32GB (2 x 16GB) DDR4 3200MHz System Memory Black HeatsinkVoltage: 1.35VLatency Timing: CL16Speed: 3200MHz (PC4-25600)2 x 16GB DIMM MemoryIntel XMP Profile Support |
| Memory Configuration | 2 x 16GB 4 Lanes (2 occupied) |
Storage Controllers
| SSD Drive | Kingston NV2 (SNV3S/1000G) 1TB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 6000 MB/s, Write 4000 MB/sData storage life320 TBWMTBF1,500,000 hoursInterfaces/PortsPCIe Gen4 x4 NVMe |
| Hard Drive | No Additional Drive Fitted |
| Optical Drive | No Optical Drive Fitted |
| Rear I/O | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x DisplayPorts3 x USB 3.2 Gen 1 ports1 x USB Type-C port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper |
| Chassis | DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Solid Sides |
| IO Ports | 2 x USB 3.0HD Mic/AudioPowerReset |
Network
| Power Supply | DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug, Flat Black Cables1 x Main Power Connector 24-Pin (20+4)1 x EPS 12V Connector 8-Pin (4+4)2 x PCIE 6+2 Pin (x1)6 x SATA (x2)2 x 4-Pin Peripheral (x2) |
| Motherboard | Gigabyte B760M DS3H AX DDR4 Motherboard, Intel Socket 1700, 12th/13th Gen, 1x PCIe 4.0 x16, 2 x PCIe 4.0 M.2, Micro ATX, USB Type-C, 2.5GbE LAN, Wi-Fi 6E 802.11ax, HDMI, DisplayPort, Smart Fan 6, Q-Flash Plus |
| Expansion Slot | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
Physical
| Package Weight | 6.9 kg |
Other
| Power and Performance in a Sleek, Quiet Package | The LOGIX DC-716WH is a super-powerful, compact desktop PC designed for both home and business use. Whether you're handling resource-heavy programs, streaming 4K content, gaming, or managing school or work tasks, this PC is built to perform all day and all night without breaking a sweat. Enjoy the flexibility of a fast, reliable internet connection with both wired Ethernet and the latest WiFi 6 wireless technology. |
| Top-Tier Specs for Seamless Multitasking | Powered by a 14th Gen Intel Core i7 processor with 20 cores and 28 threads, reaching speeds up to 5.30GHz, this machine handles demanding workloads effortlessly. With 32GB of DDR4 memory and a 1TB PCIe Gen4 NVMe SSD, you get rapid program loading, fast data transfers, and plenty of memory for multitasking. Intel UHD graphics provide smooth 4K display support for work or entertainment. |
| Compact, Quiet, and Reliable | Housed in a discreet Deep Cool MACUBE110 micro tower case, the PC balances excellent cooling with near-silent operationperfect for quiet home offices or professional environments. Its modest size means it fits easily on or under your desk, freeing up space and helping you stay focused. |
| Operating System: | Windows 11 HomeProcessor: 14th Gen Intel Core i7-14700 2.1GHz (5.3GHz boost) 20-cores & 28 threadsMemory (RAM): Kingston Technology 32GB DDR4 (upgradeable to 64GB DDR4 additional memory slot available)Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSDStorage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5"Graphics: Intel UHD Graphics 770Motherboard: Gigabyte B760M DS3H AX Intel Socket 1700Case: Deep Cool MACUBE 110 Micro TowerConnections: Front 2 x USB 3.01 x HD Mic/AudioBack: 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x DisplayPort3 x USB 3.2 Gen 1 ports1 x USB Type-C port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacksNetworking: Wired: Realtek 2.5GbE LAN Wireless: WiFi 6E 802.11axPeripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse Warranty: 3 years - parts and collection included (UK mainland only) |
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 6000MB/SWrite: Up to 4000MB/S |
| Graphics | Intel UHD Graphics 770Graphics Base Frequency300 MHzGraphics Max Dynamic Frequency1.50 GHzGraphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1Execution Units32Max Resolution (HDMI)4096 x 2160 @ 60HzMax Resolution (DP)7680 x 4320 @ 60Hz |
| Graphics Card I/O | No Graphics Card Fitted. Uses Intel On-Chip Graphics |
| Card Reader | No Card Reader Fitted |
