Description

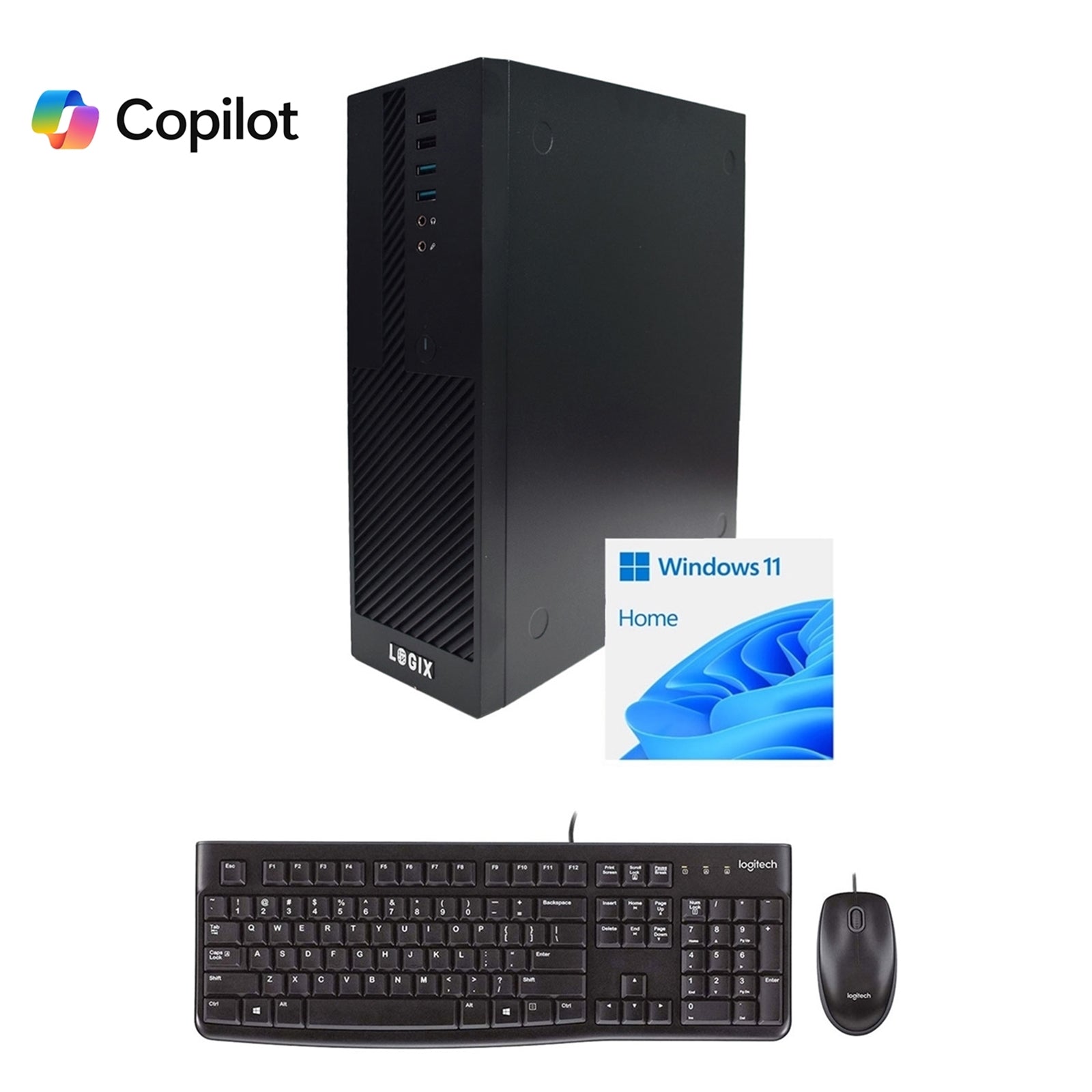

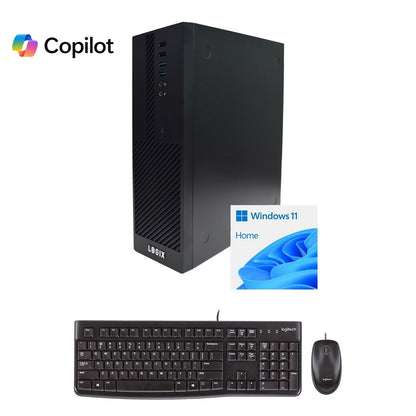

LOGIX 14th Gen Intel Core i5 10 Core Small Form Factor SFF Home / Office PC with 16GB RAM, 1TB SSD, Wi-Fi 6 + BT, Windows 11 Home, Keyboard, Mouse & 3 Year Warranty
The Ideal Home PC for Power and Discretion. Whether its work, school, or entertainment, the LOGIX S4-516H offers a powerful, secure, and compact computing solution tailored for todays home user. Powerful, Compact, and Built for Everyday Use: The LOGIX S4-516H is a discreet, small form factor PC designed to deliver powerful performance in a compact package. Perfect for home users juggling large reports, online meetings, browsing, and entertainment, this PC offers reliable speed and ample storage without taking up much desk space. Secure and Ready to Use: Built with cyber security in mind, the LOGIX S4-516H features a wired-only internet connection to reduce attack risks. Windows 11 Home comes preinstalled and updated, with no bloatware, so you get a clean, ready-to-go experience. A Logitech MK120 keyboard and optical mouse are included so you can start working right away. Quality Craftsmanship and Long-Term Reliability: Hand-built in the UK using world-renowned components, this PC is designed for durability and future-proofing. It comes with a 3-year warranty and easy setup instructions in the Quick Start Guide, ensuring years of reliable, secure use. Operating System: Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/g/b 2.4 GHzBluetooth 5.2 WLAN Signal Rate:5 GHz11ax: Up to 1201 Mbps(dynamic)11ac: Up to 867 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11a: Up to 54 Mbps(dynamic) 2.4 GHz11ax: Up to 574 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic) Warranty: 3 Years Parts & Labour Including Collect and Return (UK mainland only)
Specs
Processor
| Processor | Intel Core i5 14400 10 Core Processor 16 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 20MB Cache |
| Processor Cores | 10 |
| Processor Threads | 16 |
| Core Clock Speed | 3.50GHz |
| Core Boost Speed | 4.70GHz |
Memory
| Memory | Kingston Technologies RAM 16GB No Heatsink DDR4 3200MHz System MemoryVoltage: 1.20VLatency Timing: CL22Speed: 3200MHz (PC4-25600)2 x 8GB DIMM MemoryIntel XMP Profile Support |
| Memory Configuration | 2 x 8GB 2 Lanes (2 occupied) |
Storage Controllers
| SSD Drive | Kingston NV3 (SNV3S/1000G) 1TB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 6000 MB/s, Write 4000 MB/sData storage life160 TBWMTBF1,500,000 hoursInterfaces/PortsPCIe Gen4 x4 NVMe |
| Hard Drive | No Additional Drive Fitted |
| Optical Drive | No Optical Drive Fitted |
| Rear I/O | 1 x PS/2 keyboard/mouse port1 x D-Sub port2 x DisplayPorts1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper1 x chassis intrusion header |
| Chassis | LOGIX Small Form Purpose Built Robust Chassis |
| IO Ports | 2 x USB 3.02 x USB 2.0HD MicHD AudioPower |
Network
| Power Supply | 300w TFX Pre-Fitted PSU |
| Motherboard | Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port |
| Expansion Slot | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
Physical
| Package Weight | 6.9 kg |
Other
| Efficient Performance for All Your Needs | Powered by a 14th Gen Intel Core i5 processor with 10 cores and 16 threads, running from 3.50GHz up to 4.70GHz turbo boost, this PC handles multitasking and demanding applications smoothly. With 16GB of Kingston DDR4 memory and a 1TB PCIe 4.0 NVMe SSD, it loads programs quickly and manages large files with ease. |
| Operating System: | Windows 11 HomeProcessor: 14th Gen Intel Core i5-14400Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4)Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSDGraphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)Motherboard: Gigabyte H610M Ultra Durable MotherboardCase: LOGIX Small Form FactorConnections: Front 2 x USB-A 3.02 x USB-A 2.03.5mm HD microphone & audioBack: 2 x PS/21 x VGA2 x DisplayPort1 x HDMI2 x USB-A 3.2 Gen 14 x USB-A 2.01 x RJ-45 Ethernet3 x 3.5mm AudioNetworking: Wired: Realtek 1Gbps GbE LANWireless:Wireless: WiFi 6E 802.11axPeripherals: Logitech MK120 Wired Keyboard & Mouse Warranty: 3 years - parts and collection included (UK mainland only) |
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 6000MB/SWrite: Up to 4000MB/S |
| Graphics | Intel UHD Graphics 730Graphics Base Frequency300 MHzGraphics Max Dynamic Frequency1.40 GHzGraphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1Execution Units32Max Resolution (HDMI)4096 x 2160 @ 60HzMax Resolution (DP)7680 x 4320 @ 60Hz |
| Graphics Card I/O | No Graphics Card Fitted. Uses Intel On-Chip Graphics |
| Card Reader | No Card Reader Fitted |
