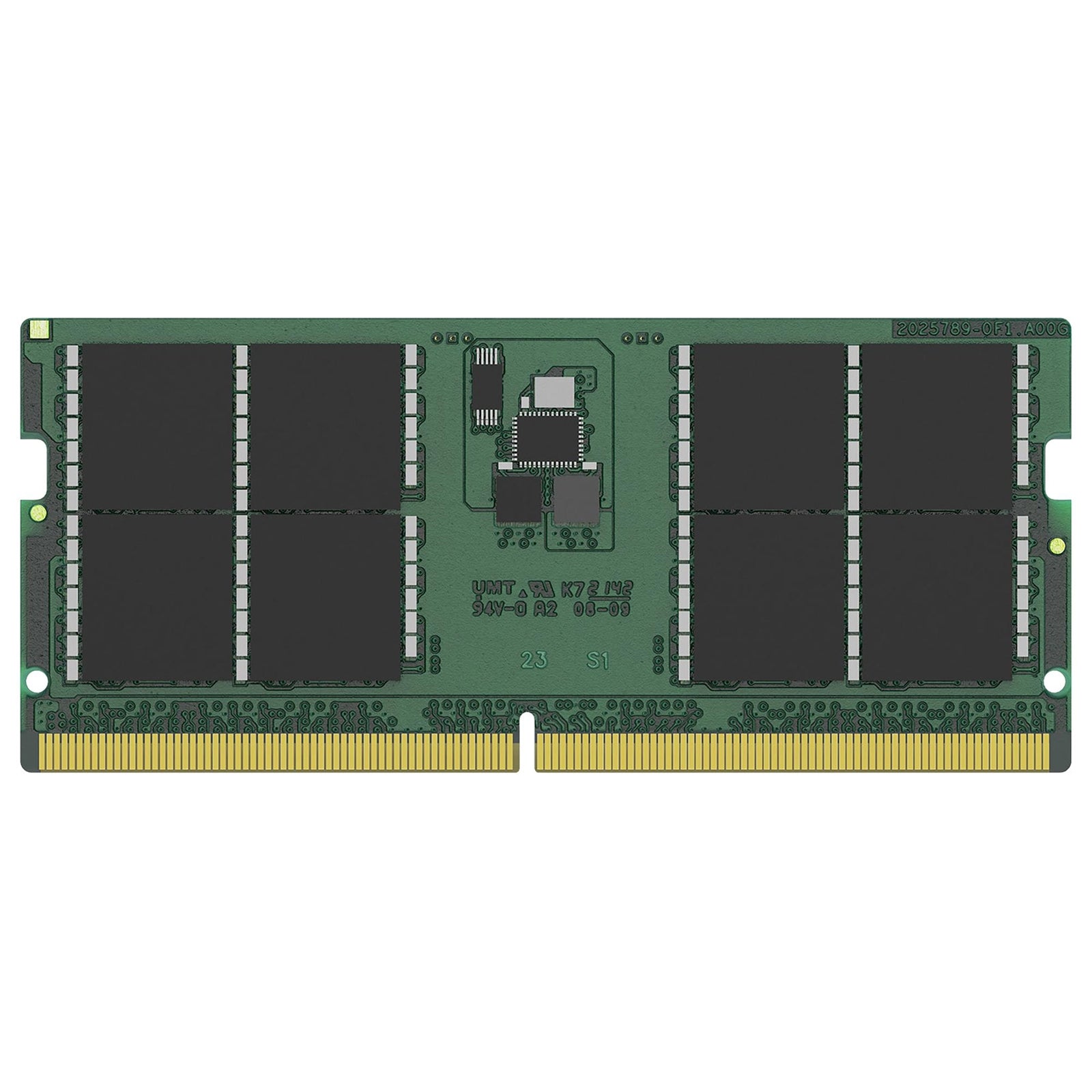

Kingston ValueRAM 32GB DDR5-5600 CL46 Laptop Memory - KVR56S46BD8-32
Key Highlights:
- 32GB Capacity (1 x 32GB Module)
- DDR5-5600 (PC5-44800) Memory Speed
- CL46 Latency
- 262-Pin SO-DIMM Form Factor
- Non-ECC Unbuffered Memory
- Dual Rank 2Rx8 Configuration
- JEDEC Standard Compliant
- Low Voltage 1.1V Operation
Product Description
High-Capacity DDR5 Laptop Upgrade
The Kingston ValueRAM KVR56S46BD8-32 delivers 32GB of high-performance DDR5 memory in a compact SO-DIMM form factor, making it ideal for laptops, mobile workstations and mini PCs. Designed to Kingston's rigorous quality standards, it provides exceptional reliability, compatibility and performance for demanding workloads.
Boost Productivity and Multitasking
With a large 32GB capacity, this module significantly improves multitasking capabilities, allowing users to run multiple applications, virtual machines, creative software and productivity tools simultaneously with greater responsiveness.
Next-Generation DDR5 Performance
Operating at 5600MT/s, DDR5 technology delivers increased bandwidth and improved efficiency compared to previous DDR4 memory generations. Applications load faster, workflows become smoother and system responsiveness is enhanced.
Built for Broad Compatibility
The module follows JEDEC industry standards for maximum compatibility with DDR5-enabled laptops and compact desktop systems. It installs easily and operates without requiring manual tuning or overclocking profiles.
Energy Efficient Design
Running at only 1.1V, the memory reduces power consumption while maintaining dependable performance, making it particularly suitable for portable devices where efficiency matters.
Reasons to Buy
-
32GB Capacity: Excellent for professional workloads and heavy multitasking.
-
DDR5-5600 Speed: High-bandwidth memory performance.
-
SO-DIMM Form Factor: Perfect for laptops and compact systems.
-
JEDEC Compliant: Broad platform compatibility.
-
Dual Rank Design: Optimised memory architecture.
-
Low Voltage Operation: Improved power efficiency at 1.1V.
-
On-Die ECC Architecture: Improved internal data integrity.
-
Kingston Reliability: Trusted industry-leading memory manufacturer.
Technical Specifications
General
| Specification |
Value |
| Brand |
Kingston |
| Series |
ValueRAM |
| Manufacturer Part Number |
KVR56S46BD8-32 |
| Product Type |
Laptop Memory Module |
| Form Factor |
SO-DIMM |
Memory Specifications
| Specification |
Value |
| Capacity |
32GB |
| Memory Type |
DDR5 SDRAM |
| Memory Speed |
5600MT/s |
| Memory Standard |
PC5-44800 |
| CAS Latency |
CL46 |
| Timing |
46-45-45 |
Module Configuration
| Specification |
Value |
| Module Capacity |
32GB (1 x 32GB) |
| Rank Configuration |
2Rx8 (Dual Rank) |
| Data Width |
64-bit |
| Chip Organisation |
x8 |
| Pin Count |
262-Pin |
Electrical Specifications
| Specification |
Value |
| Operating Voltage |
1.1V |
| VDD |
1.1V |
| VDDQ |
1.1V |
| VPP |
1.8V |
Memory Features
| Specification |
Value |
| Error Correction |
Non-ECC |
| Buffered |
No (Unbuffered) |
| On-Die ECC |
Yes |
| JEDEC Compliant |
Yes |
| Plug and Play |
Yes |
Compatibility
| Specification |
Value |
| System Type |
Laptops & Mobile Workstations |
| Memory Slot Type |
DDR5 SO-DIMM |
| Platform Compatibility |
DDR5-Compatible Systems |
| Mini PC Compatible |
Yes |
Physical Characteristics
| Specification |
Value |
| Form Factor |
SO-DIMM |
| PCB Colour |
Green |
| Contact Finish |
Gold-Plated Edge Contacts |
| RoHS Compliant |
Yes |
| Halogen Free |
Yes |
Environmental Specifications
| Specification |
Value |
| Operating Temperature |
0°C to 85°C |
| Storage Temperature |
-55°C to 100°C |
Ideal Applications
- Laptop Memory Upgrades
- Mobile Workstations
- DDR5 Mini PCs
- Creative Applications
- Professional Productivity Systems
- Virtual Machines & Multitasking
What's In The Box
- Kingston ValueRAM 32GB DDR5-5600 SO-DIMM Memory Module
- Protective Packaging
- Product Documentation
Product Identifiers
| Identifier |
Value |
| Brand |
Kingston |
| Series |
ValueRAM |
| Manufacturer Part Number |
KVR56S46BD8-32 |
| Capacity |
32GB |
| Memory Type |
DDR5-5600 |
| Form Factor |
262-Pin SO-DIMM |
| Error Correction |
Non-ECC Unbuffered |
