Key Features
- HomePlug AV2 Technology with Speeds up to 1000Mbps
- 2 x Gigabit Ethernet Ports per Adapter
- Integrated Passthrough Power Socket
- Plug & Play Installation
- Up to 300m Range over Existing Electrical Wiring
- 128-Bit AES Powerline Encryption
- Compatible with HomePlug AV & AV2 Adapters
- Power Saving Mode Reduces Energy Consumption by up to 85%
Product Description
Extend Your Network Through Existing Electrical Wiring

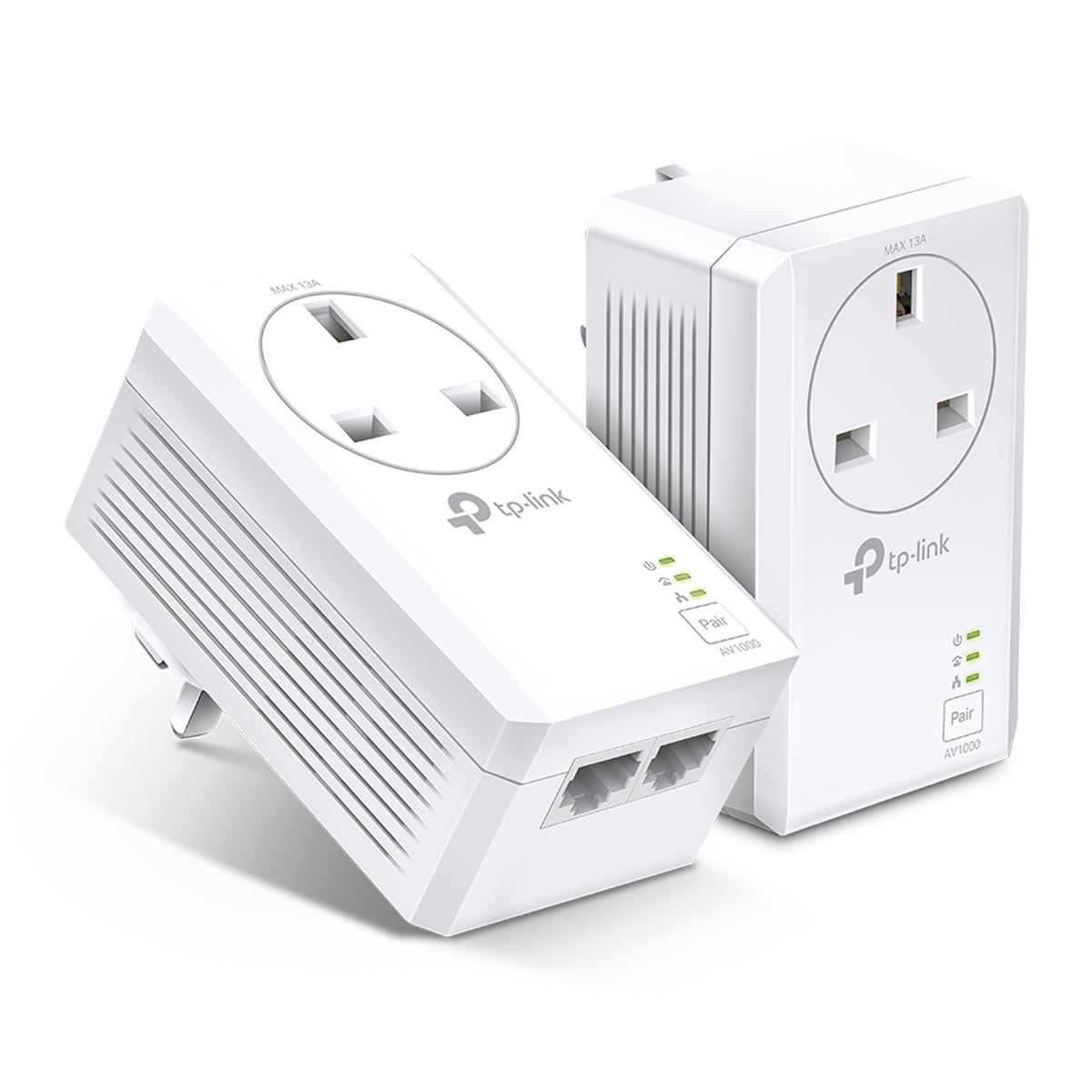

The TP-Link TL-PA7027P KIT transforms your home's existing electrical wiring into a high-speed network, eliminating the need for additional cabling or drilling. Simply plug the adapters into power outlets and enjoy reliable wired networking throughout your home.
AV1000 High-Speed Performance
Featuring advanced HomePlug AV2 technology, the TL-PA7027P KIT delivers powerline data transfer rates of up to 1000Mbps. This makes it ideal for bandwidth-intensive applications including 4K video streaming, online gaming, large file transfers and smart home connectivity.
Dual Gigabit Ethernet Ports
Each adapter includes two Gigabit Ethernet ports, allowing multiple devices such as smart TVs, gaming consoles, desktop PCs, media streamers and set-top boxes to connect simultaneously with fast and stable wired connections.
Integrated Passthrough Power Socket
The built-in passthrough power outlet means you don't lose access to a wall socket. Continue powering household appliances while extending your network, with an integrated noise filter helping reduce electrical interference.
Energy Efficient Operation
Intelligent power-saving technology automatically switches the adapters into Power-Saving Mode when inactive, reducing energy consumption by up to 85% compared to standard operating mode.
Main Benefits
-
Up to 1000Mbps Speeds: Perfect for demanding network applications.
-
Dual Gigabit Ports: Connect multiple wired devices.
-
No New Cabling Required: Uses existing electrical infrastructure.
-
Passthrough Socket: No wall outlet lost.
-
Secure Connections: 128-bit AES encryption.
-
Long Range Coverage: Up to 300 metres.
-
Plug & Play Setup: Quick and simple installation.
-
Energy Saving Design: Lower power consumption.
General Specifications
| Specification |
Details |
| Manufacturer |
TP-Link |
| Model |
TL-PA7027P KIT |
| Product Type |
Powerline Network Starter Kit |
| Powerline Standard |
HomePlug AV2 |
| Maximum Speed |
1000Mbps |
| Adapter Quantity |
2 |
Networking Specifications
| Specification |
Details |
| Powerline Standard |
HomePlug AV2 |
| Supported Standards |
HomePlug AV2, HomePlug AV, IEEE 1901 |
| Ethernet Standards |
IEEE 802.3, IEEE 802.3u |
| Maximum Data Rate |
Up to 1000Mbps |
| Maximum Coverage |
Up to 300m over electrical wiring |
Port Configuration
| Feature |
Details |
| Gigabit Ethernet Ports |
2 per Adapter |
| Ethernet Speed |
10/100/1000Mbps |
| Passthrough Power Socket |
Yes |
| Connection Type |
RJ45 Gigabit Ethernet |
Security Features
| Feature |
Specification |
| Encryption Type |
128-bit AES |
| Powerline Security |
Supported |
| Pair Button |
Yes |
| Reset Function |
Yes |
Power Specifications
| Specification |
Details |
| Maximum Power Consumption |
4W |
| Standby Power Consumption |
0.84W |
| Power Saving Mode |
Up to 85% Energy Reduction |
| Integrated Socket |
Yes |
LED Indicators
| Indicator |
Status Monitoring |
| Power LED |
Power Status |
| Powerline LED |
Powerline Connection Status |
| Ethernet LED |
Network Activity |
Technology Features
| Technology |
Benefit |
| HomePlug AV2 |
High-speed networking over powerlines |
| OFDM Modulation |
Reliable signal transmission |
| Noise Filtering |
Reduced electrical interference |
| Plug & Play |
Quick installation without configuration |
Compatibility
| Category |
Support |
| HomePlug AV Adapters |
Compatible |
| HomePlug AV2 Adapters |
Compatible |
| Windows |
Windows XP, Vista, 7, 8, 8.1 |
| macOS |
Supported |
| Linux |
Supported |
Physical Specifications
| Specification |
Details |
| Width |
58mm |
| Depth |
42mm |
| Height |
95mm |
| Form Factor |
Wall Plug Adapter |
Certifications
| Certification |
Status |
| CE |
Certified |
| RoHS |
Compliant |
Ideal Applications
- 4K UHD Video Streaming
- Online Gaming
- Smart TV Connectivity
- Home Office Networking
- Desktop PC Connections
- Network Attached Storage (NAS)
- Media Streaming Devices
- Large File Transfers
What's In The Box
- 2 x TP-Link TL-PA7027P AV1000 Powerline Adapters
- 2 x Ethernet Cables
- Quick Installation Guide
Product Identifiers
| Identifier |
Value |
| Brand |
TP-Link |
| Model |
TL-PA7027P KIT |
| Powerline Standard |
HomePlug AV2 |
| Maximum Speed |
1000Mbps |
| Ethernet Ports |
2 x Gigabit per Adapter |
| Maximum Range |
300m |
| Encryption |
128-bit AES |
| Passthrough Socket |
Yes |
