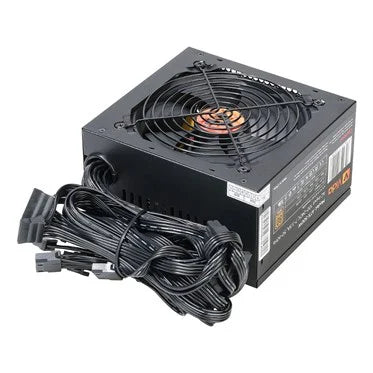

Vida ATX-500W 500W 80+ Bronze ATX Power Supply
Overview
The Vida ATX-500W is a 500W non-modular ATX power supply with 80+ Bronze certification, designed for budget-conscious gaming and office PC builds. It delivers stable, efficient power via a single +12V rail, features a quiet 120mm Fluid Dynamic Bearing (FDB) fan, and includes all essential connectors for modern systems. Backed by a 2-year warranty and certified to CB, CE, RoHS, CCC, FCC, and UKCA standards.
80+ Bronze Efficiency
With 80+ Bronze certification and up to 85% efficiency under typical loads, the ATX-500W reduces wasted energy and heat output compared to uncertified units. Active PFC ensures stable, clean power delivery across the full 100–240V input voltage range.

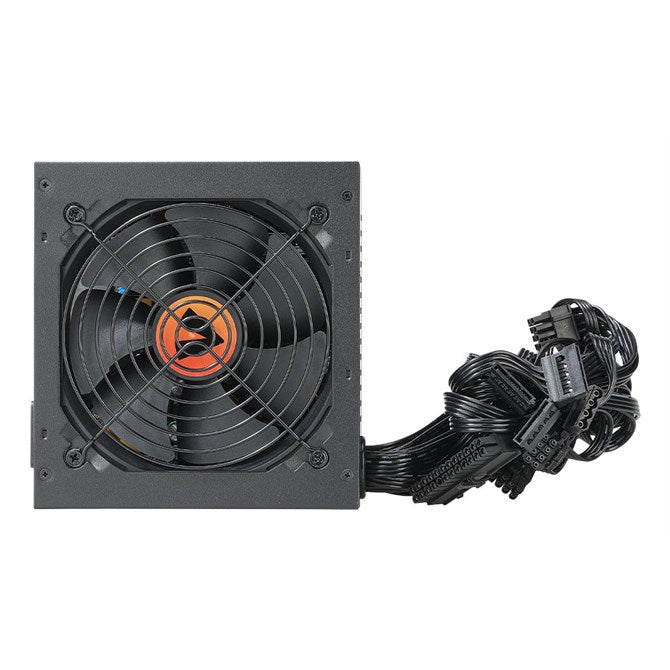

Quiet 120mm FDB Fan
A 120mm Fluid Dynamic Bearing (FDB) fan provides efficient cooling with low noise output, keeping the PSU running quietly during everyday use and moderate gaming workloads.
Non-Modular Design
All cables are permanently attached, making this a straightforward plug-in solution for standard ATX builds. Includes all essential connectors: 24-pin ATX, 4+4-pin CPU, 2× PCIe 6+2-pin, 6× SATA, 3× Molex, and 1× floppy.
What’s Included
- Vida ATX-500W power supply
- Fixed cable set
- Mounting screws
- 2-year manufacturer warranty
Technical Specifications
General
| Model | Vida ATX-500W |
| Wattage | 500 W |
| Efficiency Rating | 80+ Bronze (~85%) |
| Form Factor | ATX (v1.3) |
| Modularity | Non-Modular |
| Colour | Black |
| Warranty | 2 years |
Power & Input
| AC Input Voltage | 100–240 V |
| AC Frequency | 50/60 Hz |
| PFC | Active |
| +12V Rails | 1 |
Rail Outputs
| +12V | 36 A |
| +5V | 20 A |
| +3.3V | 20 A |
| -12V | 0.5 A |
| +5Vsb | 2.5 A |
Cooling
| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Location | Front |
| Fan Count | 1 |
Connectors
| ATX 24-pin | 1 (55 cm cable) |
| CPU 4+4-pin | 1 (58 cm cable) |
| PCIe 6+2-pin | 2 (61 cm cable) |
| SATA | 6 on 2 cables (1000 mm) |
| Molex (4-pin) | 3 (800 mm cable) |
| Floppy | 1 |
Certifications
| Certifications | CB, CCC, CE, FCC, RoHS, UKCA |
Physical Dimensions
| Width | 150 mm |
| Depth | 85 mm |
| Height | 140 mm |
| Weight | 1.43 kg |
| EAN | 5056733100208 |
