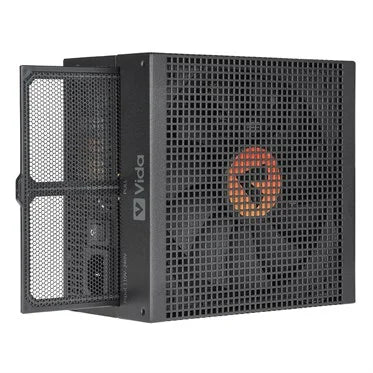

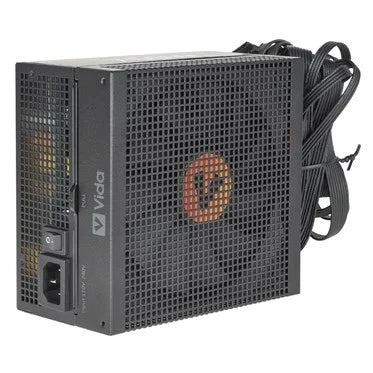

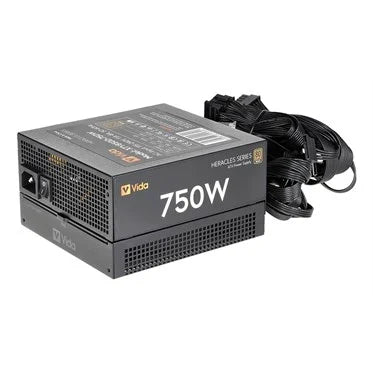

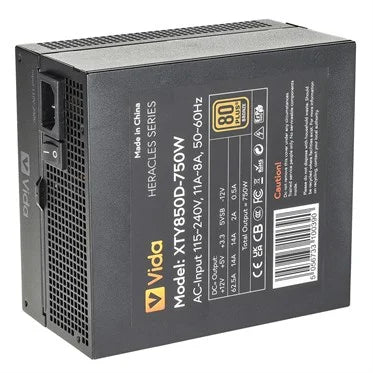

VIDA Heracles 750W 80+ Bronze ATX Power Supply (Fully Modular)
Overview
The VIDA Heracles 750W is a reliable and efficient ATX power supply designed to deliver stable power for modern PC systems. With 80 PLUS Bronze certification, a fully modular cable design, and a quiet 140mm hydraulic bearing fan, it provides balanced efficiency, cooling, and cable management for gaming and professional builds.
Key Features
- 750W total output power
- 80 PLUS Bronze certified efficiency (up to 85%)
- Fully modular cabling for improved airflow and cable management
- Ultra-quiet 140mm fan with hydro bearing
- Active PFC for stable and efficient power delivery
- Removable dust filter for improved airflow longevity
- Multiple PCIe, SATA, and Molex connectors
- Over-voltage protection for enhanced safety
Performance & Reliability
Designed for consistent power delivery, the Heracles PSU provides strong output on the +12V rail (62.5A), making it suitable for gaming PCs and high-performance systems. With active Power Factor Correction and stable voltage rails, it ensures reliable operation under varying loads.
Cooling & Design

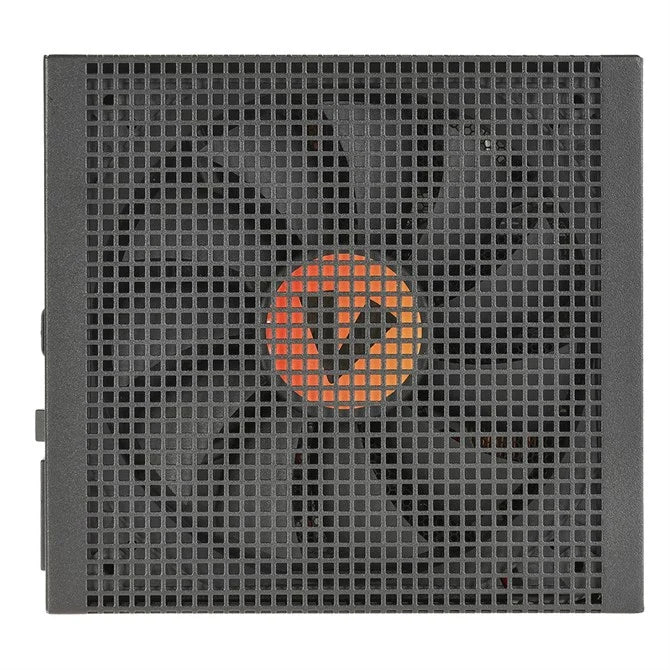

The PSU features an active cooling system with a 140mm fan and hydro bearing technology to maintain low noise levels while ensuring efficient heat dissipation. The modular design reduces cable clutter and improves overall system airflow.
Technical Specifications
Power
| Total Power | 750 W |
| Efficiency | Up to 85% (80+ Bronze) |
| Input Voltage | 115 – 240 V |
| Input Frequency | 50 / 60 Hz |
| Input Current | 11 – 8 A |
| PFC Type | Active |
Output Rails
| +12V | 62.5 A |
| +5V | 14 A |
| +3.3V | 14 A |
| -12V | 0.5 A |
| +5VSB | 2 A |
Connectors
| Motherboard | 20+4 pin ATX (55 cm) |
| CPU Power | 4+4 pin (65 cm) |
| PCIe | 4 × 6+2 pin (55 cm) |
| SATA | 6 connectors (2 cables) |
| Peripheral (Molex) | 3 connectors |
| Floppy Connector | Yes |
Cable Details
| Modular Design | Fully Modular |
| SATA Cable Length | 690 mm |
| Molex Cable Length | 690 mm |
Performance & Standards
| Certification | 80 PLUS Bronze |
| ATX Version | 2.54 |
| Purpose | PC |
| Form Factor | ATX |
| Protection | Over Voltage Protection |
Cooling & Design
| Cooling Type | Active |
| Fan Size | 140 mm |
| Fan Bearing | Hydraulic (Hydro) |
| Fan Location | Front |
| Dust Filter | Removable |
| Colour | Black |
| Power Switch | Yes |
Compliance
| Certifications | CB, CCC, CE, FCC, RoHS, UKCA |
Dimensions & Weight
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.76 kg |
Packaging
| Package Type | Box |
| Package Width | 200 mm |
| Package Depth | 295 mm |
| Package Height | 140 mm |
| Package Weight | 2.4 kg |
Other
| Warranty | 2 Years |
| Country of Origin | China |
