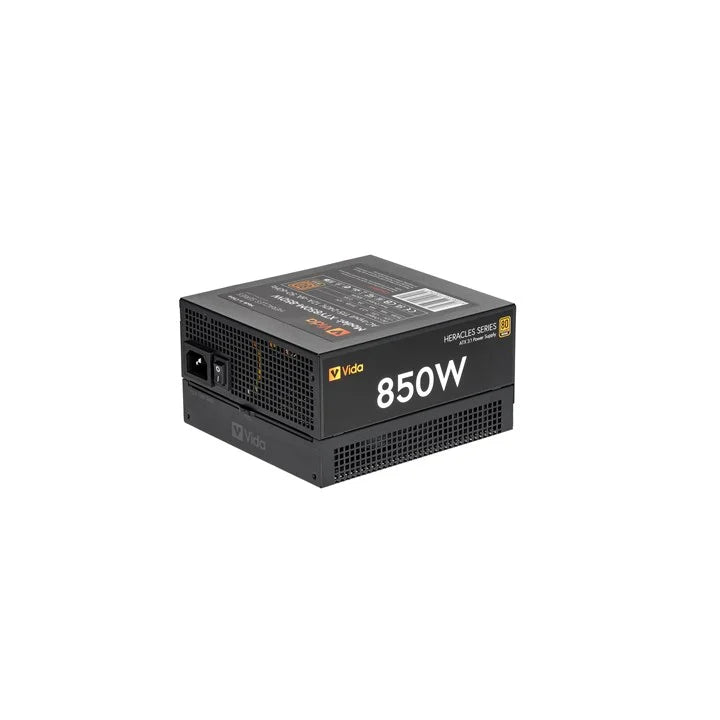

Vida Heracles 850W 80+ Bronze ATX 3.1 Power Supply, Non-Modular, 140mm FDB Fan, 16-pin PCIe, Removable Dust Filter, Black
Vida Heracles 850W 80+ Bronze ATX 3.1 Power Supply, Non-Modular, 140mm FDB Fan, Black Overview The Vida Heracles 850W is an 80+ Bronze certified ATX 3.1 power supply designed to deliver reliable, efficient power for mainstream and gaming PC builds. It features a fully wired non-modular cable design, a 140mm FDB (Fluid Dynamic Bearing) fan for ultra-quiet operation, a removable dust filter for easy maintenance, and a 16-pin PCIe connector for next-generation GPU compatibility — all backed by a 2-year warranty. 80+ Bronze Certified, 85% Efficiency The Heracles 850W achieves 80+ Bronze certification with up to 85% efficiency, reducing wasted energy and heat output compared to uncertified units. Active PFC (Power Factor Correction) ensures stable power delivery across the 115-240V input voltage range (50/60Hz), making it suitable for UK and international use. ATX 3.1 with 16-Pin PCIe Connector Compliant with the ATX 3.1 specification, the Heracles 850W includes one 12+4-pin (16-pin) PCIe connector (600mm cable) for direct compatibility with NVIDIA RTX 40/50 series and AMD RX 7000/9000 series graphics cards. Four additional 6+2-pin PCIe connectors (700mm cables) provide further GPU and accessory power flexibility. 140mm FDB Fan with Removable Dust Filter The ultra-quiet 140mm black fan uses a Fluid Dynamic Bearing (FDB) for low-noise, long-life operation. The top-mounted fan draws cool air through the removable dust filter, which can be easily cleaned to maintain optimal airflow and prolong the PSU's lifespan. No illumination keeps the aesthetic clean and professional. Single +12V Rail, 70.8A A single +12V rail delivering up to 70.8A provides clean, stable power distribution to all components. Over-voltage protection (OVP) safeguards connected hardware. Operating temperature range is 0°C to 40°C. What's Included Vida Heracles 850W PSU, all cables pre-attached (non-modular): 24-pin ATX (550mm), 4+4-pin CPU EPS (650mm), 1x 16-pin PCIe (600mm), 4x 6+2-pin PCIe (700mm), 2x SATA cables (6x SATA connectors, 750mm), 3x Molex/PATA (750mm). 2-year warranty. Power Wattage 850W Certification 80+ Bronze Efficiency 85% ATX Version ATX 3.1 Form Factor ATX PFC Active +12V Rail Single, 70.8A +3.3V Max 14A +5V Max 14A +5Vsb Max 2A -12V Max 0.5A Input Voltage 115-240V AC, 50/60Hz Protection Over Voltage (OVP) Operating Temp 0°C to 40°C Design Cabling Non-Modular Colour Black Fan 140mm FDB (top-mounted) Dust Filter Yes (removable) Illumination No On/Off Switch Yes Dimensions 160 x 86 x 156mm (W x D x H) Weight 1.76kg Connectors Motherboard ATX 1x 24-pin (550mm) CPU EPS 1x 4+4-pin (650mm) PCIe 16-pin 1x 12+4-pin (600mm) PCIe 8-pin 4x 6+2-pin (700mm) SATA 6x (2 cables, 750mm) Molex/PATA 3x (750mm) Certifications Compliance CE, UKCA, FCC, CCC, CB, RoHS Warranty 2 years
