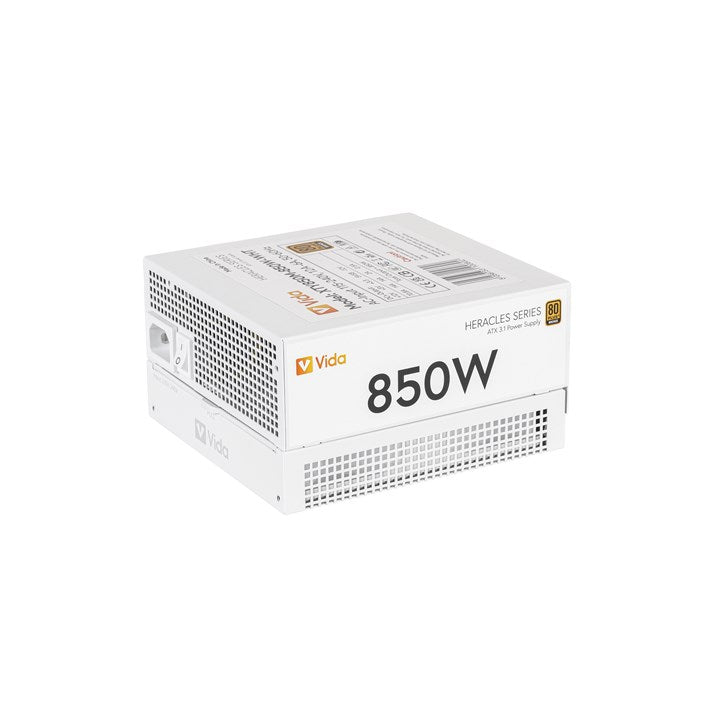

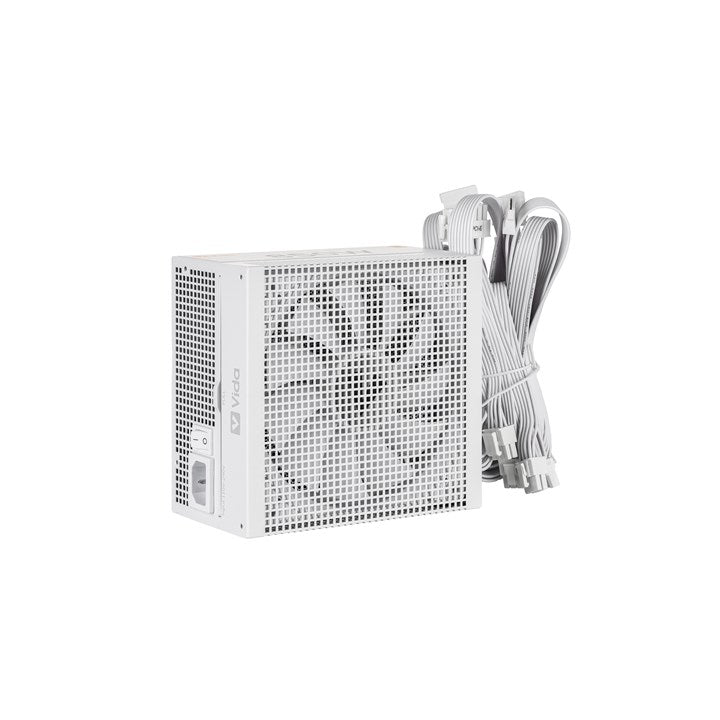

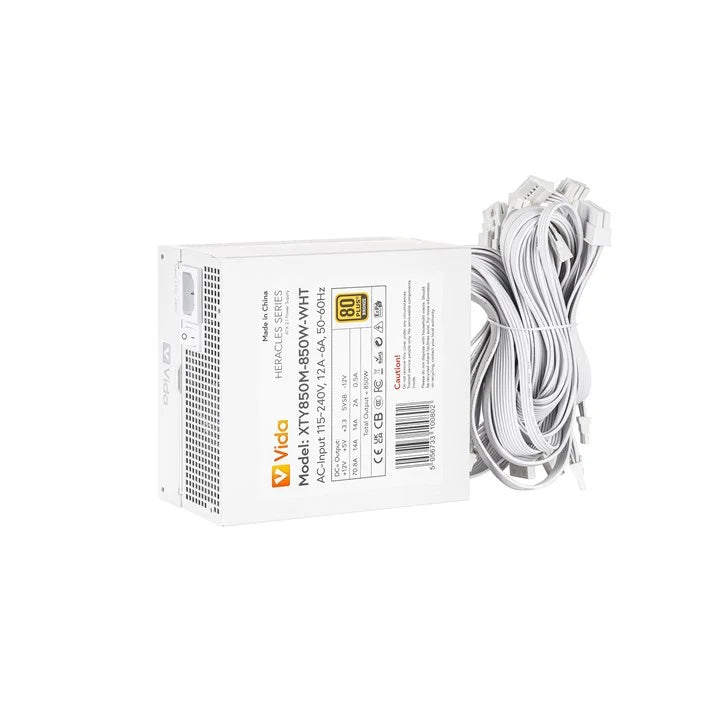

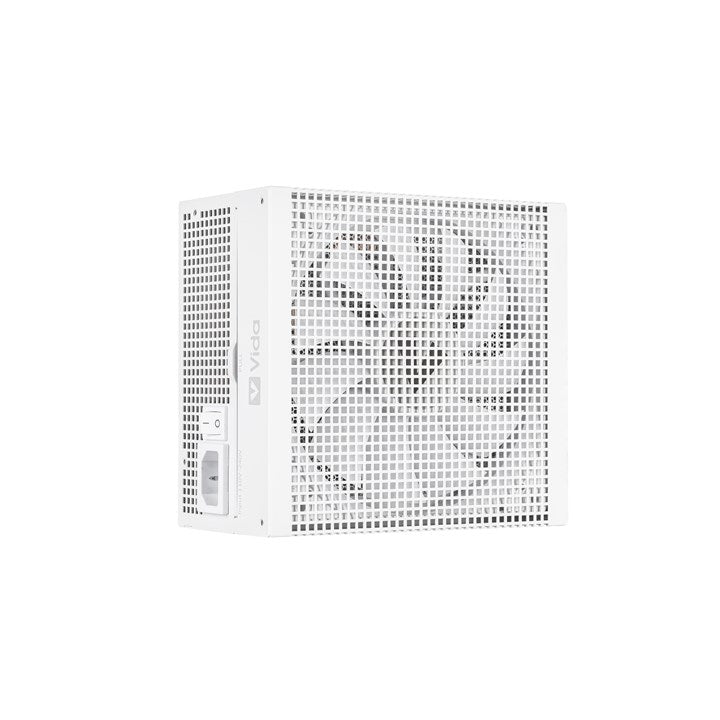

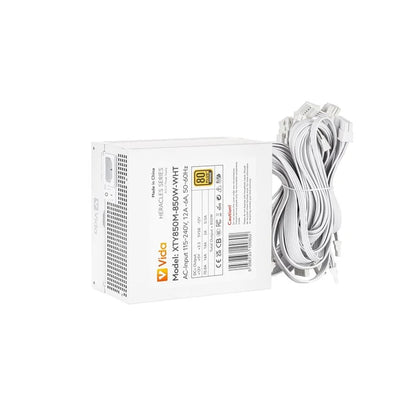

Vida Heracles XTY850M-850W 850W 80+ Bronze ATX 3.1 Gaming Power Supply (White)
Overview
The Vida Heracles XTY850M-850W is a high-capacity 850W ATX power supply designed for gaming and performance PC systems. Featuring 80 PLUS Bronze efficiency, PCIe 5.1 support, and a 140mm ultra-quiet FDB fan, it provides stable power delivery with improved thermal performance.
Key Features
- 850W total power output
- 80 PLUS Bronze certified (~85% efficiency)
- ATX 3.1 compliant
- PCIe 5.1 support (12+4 pin connector)
- 140mm ultra-quiet fan with Fluid Dynamic Bearing (FDB)
- Flat white cables included
- Single +12V rail design
- Removable dust filter
- 2-year warranty
Cooling & Reliability

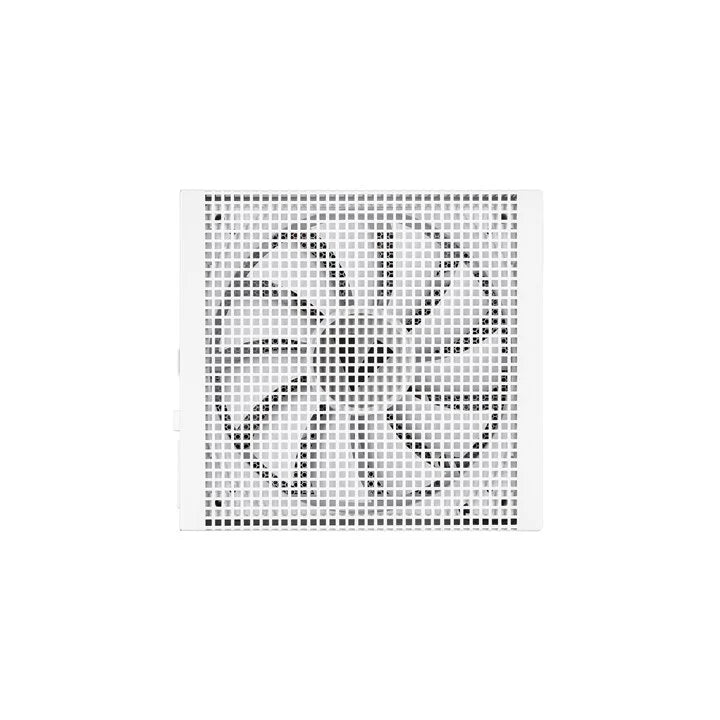

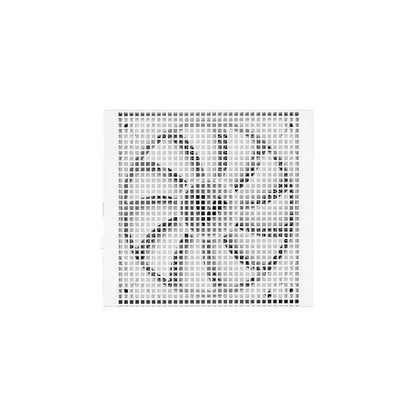

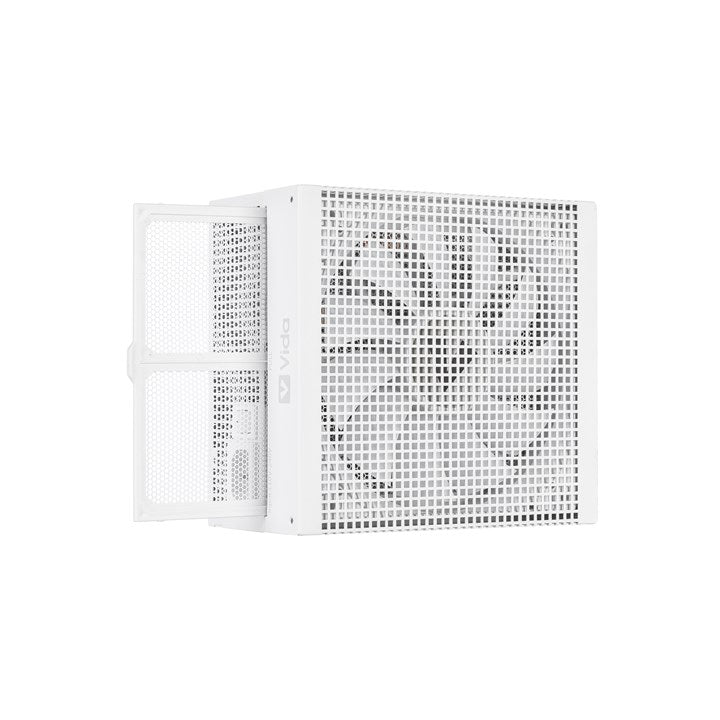

The integrated 140mm fan with fluid dynamic bearing ensures efficient cooling while maintaining low noise levels. A removable dust filter helps preserve airflow performance and extends lifespan.
Efficiency & Power Delivery
With 80 PLUS Bronze certification and ~85% efficiency, this PSU offers reliable performance while minimizing power loss. The single +12V rail ensures stable power distribution for modern GPUs and CPUs.
Technical Specifications
Power
| Total Power | 850 W |
| AC Input Voltage | 115 – 240 V |
| AC Frequency | 50 / 60 Hz |
| Input Current | 10 – 8 A |
| PFC Type | Active |
| +12V Rails | 1 |
| +3.3V Output | 14 A |
| +12V Output | 70.8 A |
| +5V Output | 14 A |
| -12V Output | 0.5 A |
| +5Vsb Output | 2 A |
| Efficiency | 85% |
| Protection | Over Voltage |
Performance
| 80 PLUS | Bronze |
| Purpose | PC |
| Form Factor | ATX |
| ATX Version | 3.1 |
| Cabling | Non‑Modular |
| Removable Filter | Yes |
| Bearing | FDB |
Design & Cooling
| Colour | White |
| Cooling | Active |
| Fan Diameter | 140 mm |
| Fan Count | 1 |
| Fan Location | Top |
Environmental
| Operating Temp | 0 – 40 °C |
Connectors
| Motherboard | 24-pin ATX |
| Cable Length | 55 cm |
| SATA Connectors | 6 (2 cables) |
| SATA Cable Length | 750 mm |
| Molex (PATA) | 3 |
| Molex Cable Length | 750 mm |
| PCIe 6+2 Pin | 4 |
| PCIe 12+4 Pin | 1 |
| PCIe Cable Length | 70 cm |
| PCIe 12+4 Cable Length | 500 mm |
| CPU Connector | 4+4 pin |
| CPU Cable Length | 58 cm |
| Included Cables | PATA, PCIe, CPU, Molex, SATA |
Certifications
| Certificates | UKCA, RoHS, FCC, CB, CCC, CE |
Dimensions & Weight
| Width | 160 mm |
| Depth | 86 mm |
| Height | 156 mm |
| Weight | 1.76 kg |
Packaging
| Package Width | 295 mm |
| Package Depth | 140 mm |
| Package Height | 200 mm |
| Package Weight | 2.18 kg |
| Package Type | Box |
Other
| Country of Origin | China |
| Warranty | 2 Years |
